RB141C1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Electrical Life | Termination Style | Switch Function | Illumination Voltage (Nominal) | Color - Actuator/Cap | Mounting Type | Illumination Type, Color | Approval Agency | Actuator Type | Voltage Rating - AC | Actuator Marking | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

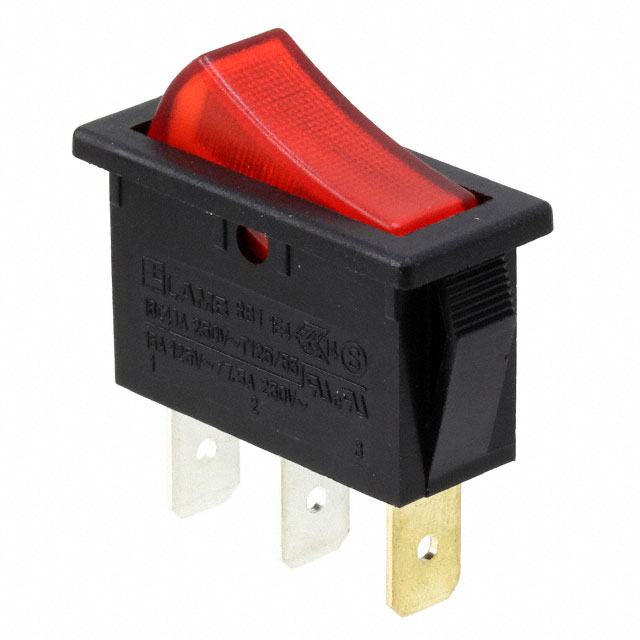

 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | On-Off | 125 VAC | Red | Panel Mount Snap-In | Neon Red | cULus | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | 11 mm | 30 mm | 15 A |
 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | On-Off | 12 VDC | Red | Panel Mount Snap-In | Incandescent Red | cULus | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | 11 mm | 30 mm | 15 A |

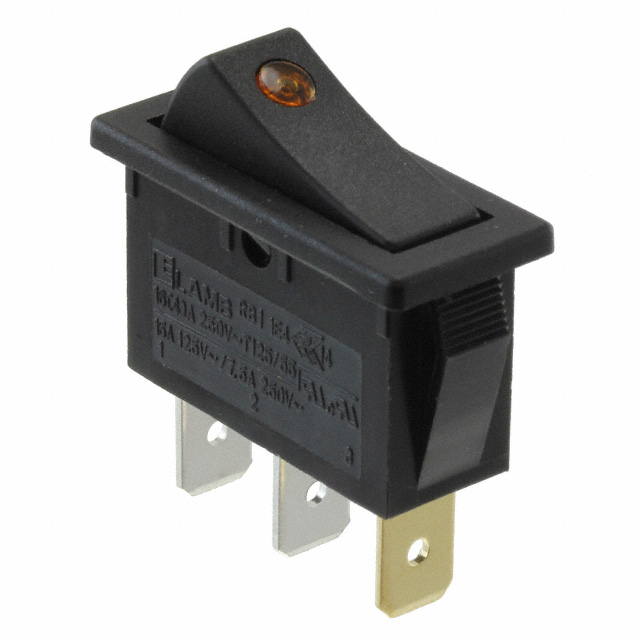

 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | On-Off | 12 VDC | Black | Panel Mount Snap-In | Amber Incandescent | cULus | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | 11 mm | 30 mm | 15 A |

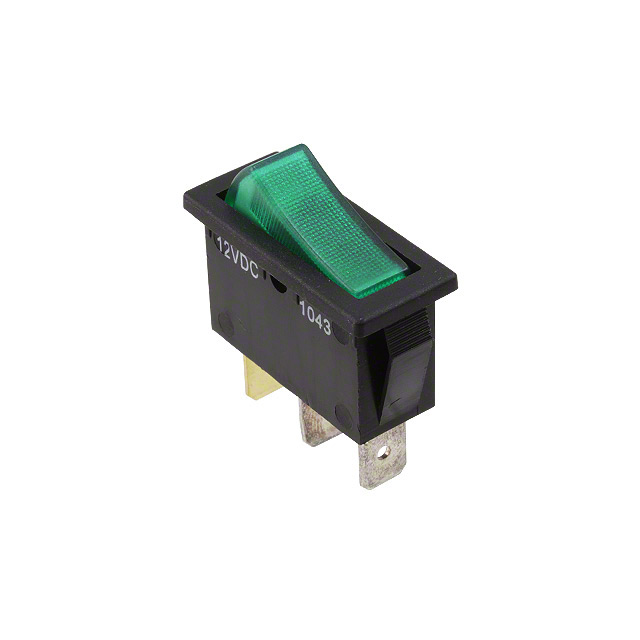

 E-Switch | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | On-Off | 12 VDC | Green | Panel Mount Snap-In | Green Incandescent | cULus | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | 11 mm | 30 mm | 15 A |
