A11 Series

Catalog

COMP O= .172,L= .31,W= .023

Part	Type	Wire Diameter [diameter]	Wire Diameter [diameter]	Finish	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Rate	Free Length [x]	Free Length [x]	End Style	Load	Free Length	Free Length	Diameter - Outside	Diameter - Outside	Diameter - Inside [diameter]

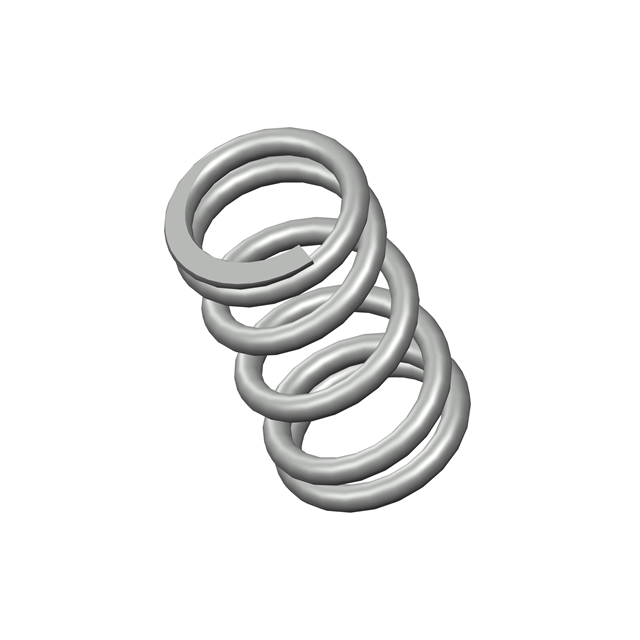

Century Spring Corp A11-22CS	Compression	0.58 mm	0.023 in	Gold Iridite	Music Wire	0.172 "	4.37 mm	0.126 in	3.2 mm	32 lbs/in	7.87 mm	0.31 "	Closed & Ground

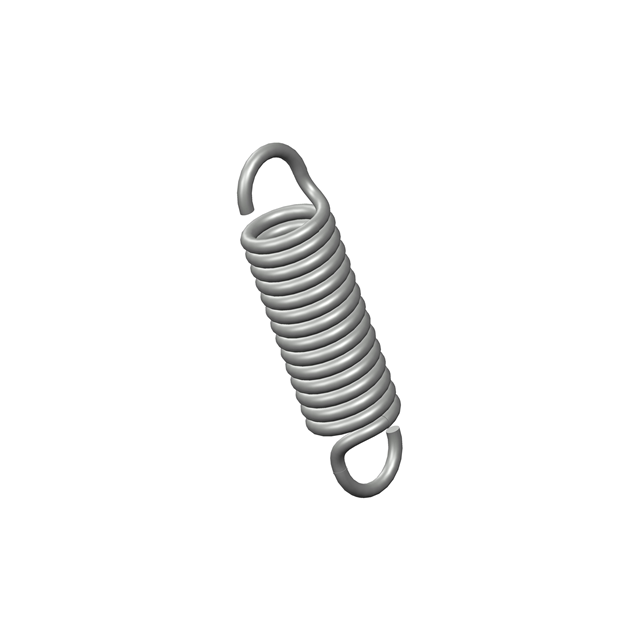

Century Spring Corp A11-2CS		1.32 mm	0.052 in	None	Spring Steel	0.33 "	8.38 mm			29 lbs/in				15 lbs

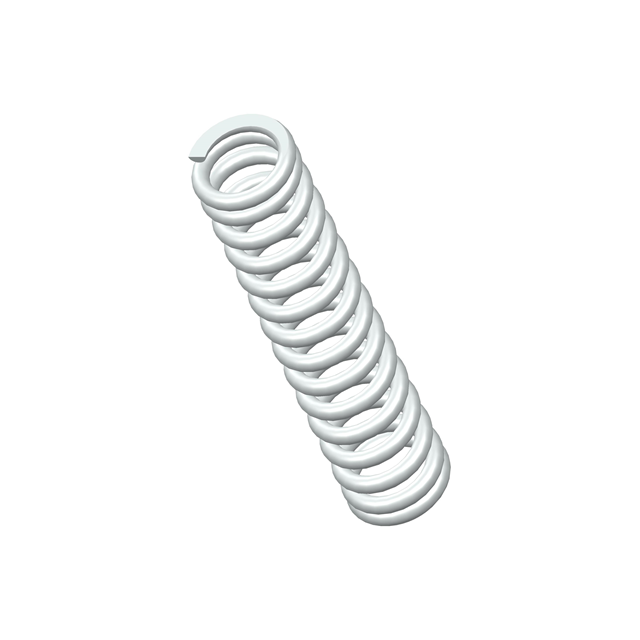

Century Spring Corp A11-13CS	Compression	1.22 mm	0.048 in	None	Stainless Steel	0.296 "	7.52 mm	0.2 in	5.08 mm	34 lbs/in			Closed & Ground		35.05 mm	1.38 "

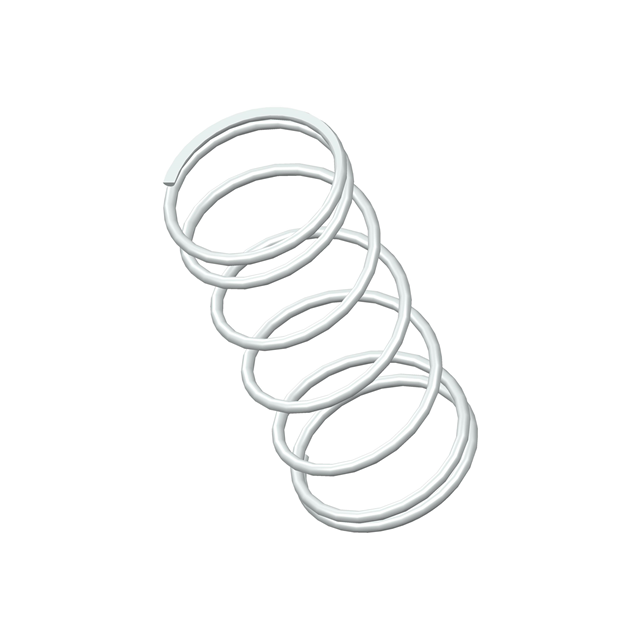

Century Spring Corp A11-12CS	Compression	0.76 mm	0.03 in	None	Stainless Steel				0.408 in	2.5 lbs/in			Closed & Ground		26.92 mm	1.06 "	0.468 in	11.89 mm	10.36 mm

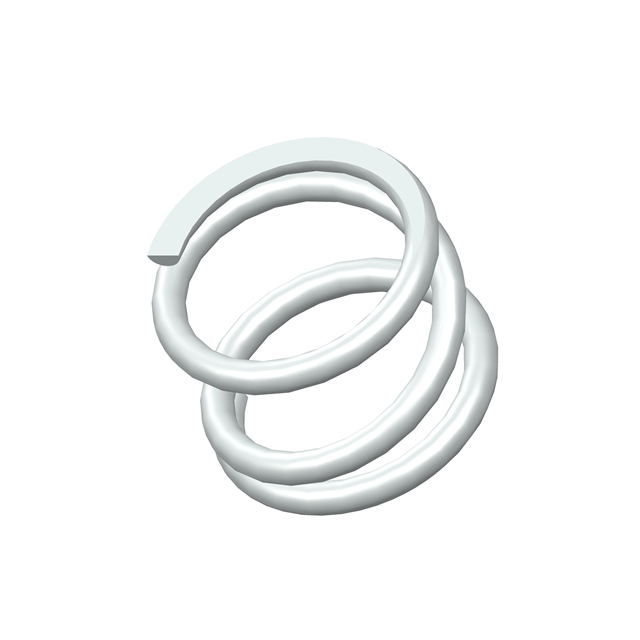

Century Spring Corp A11-21CS	Compression	0.84 mm	0.033 in	None	Stainless Steel	0.296 "	7.52 mm	0.23 in	5.84 mm	82 lbs/in	5.59 mm	0.22 "	Closed & Ground

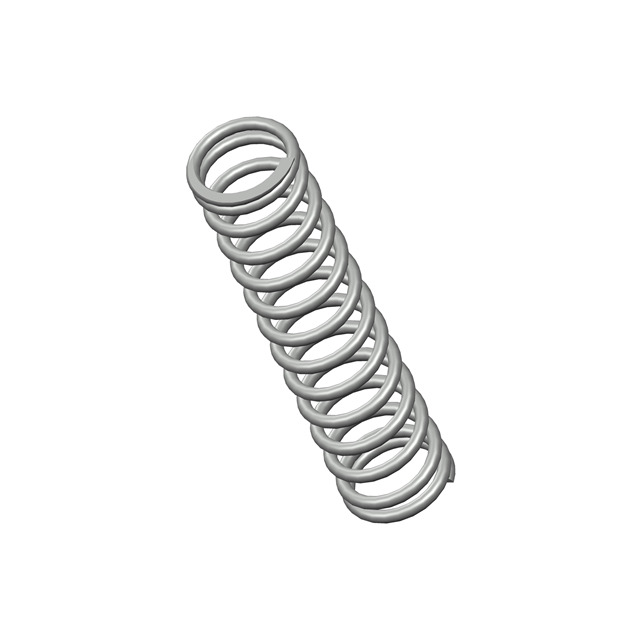

Century Spring Corp A11-56CS	Compression	0.84 mm	0.033 in	None	Spring Steel	0.281 in	7.14 mm	0.215 in	5.46 mm	9.3 lbs/in	31.75 mm	1.25 " (inch)	Closed & Ground

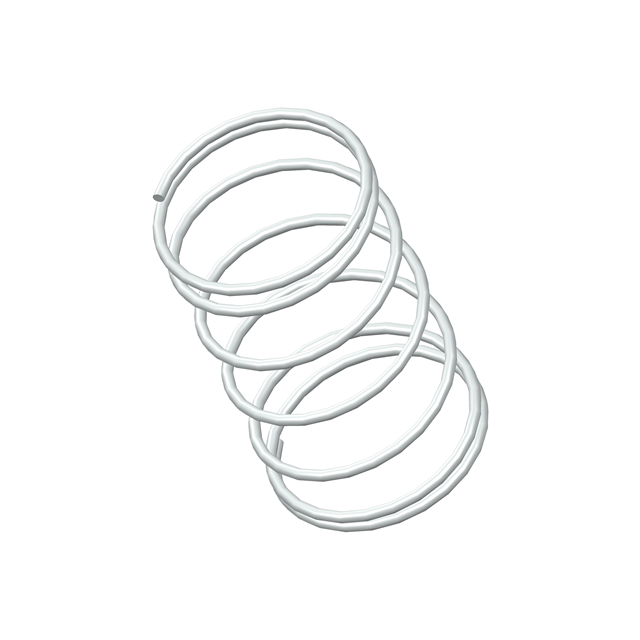

Century Spring Corp A11-65CS	Compression	0.61 mm	0.024 in	None	Stainless Steel			0.42 in	10.67 mm	0.94 lbs/in	20.57 mm	0.81 "	Closed				0.468 in	11.89 mm

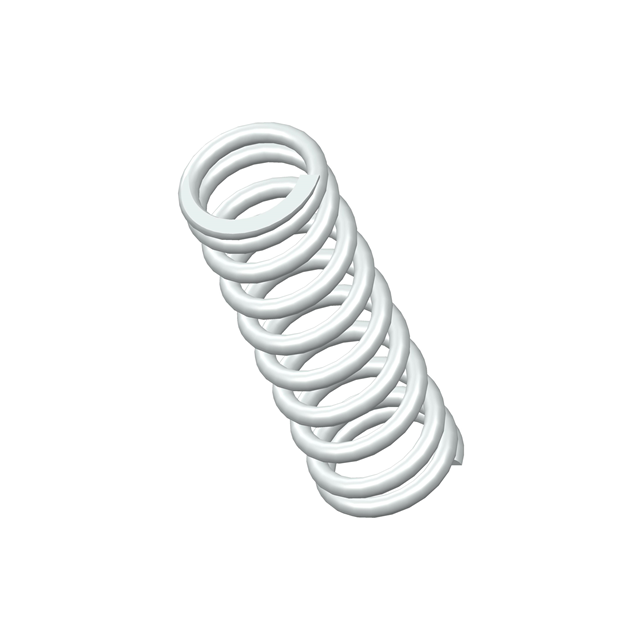

Century Spring Corp A11-11CS	Compression	0.43 mm	0.017 in	None	Stainless Steel	0.125 in	3.18 mm	0.091 in	2.31 mm	11 lbs/in			Closed & Ground		9.65 mm	0.38 "

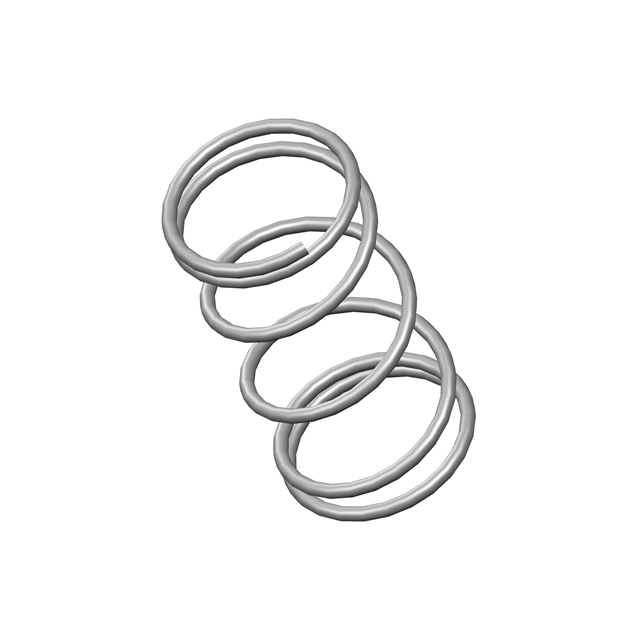

Century Spring Corp A11-67CS	Compression	0.58 mm	0.023 in	None	Music Wire	0.312 in	7.92 mm	0.266 in	6.76 mm		16 mm	0.63 "	Closed

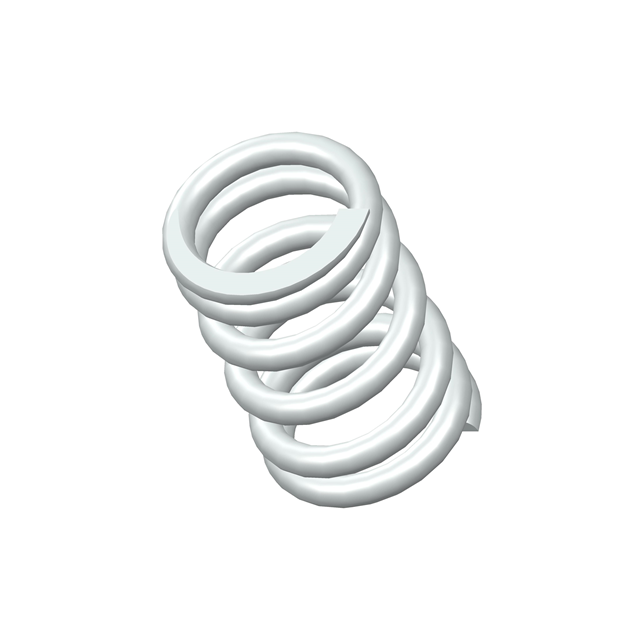

Century Spring Corp A11-10CS	Compression	1.09 mm	0.043 in	None	Stainless Steel	0.296 "	7.52 mm	0.21 in	5.33 mm	67 lbs/in			Closed & Ground		11.94 mm	0.47 "
