BAV99 Series

Catalog

DIODE ARRAY GP 75V 150MA SOT363

Part	Reverse Recovery Time (trr)	Diode Pair Count	Diode Configuration	Operating Temperature - Junction	Package / Case	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Package Name	Mounting Type	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max)	Technology	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)
Good-Ark Semiconductor BAV99DW	4 ns	2 pair	Series Connection	150 °C	6-TSSOP SC-88 SOT-363	75 V	2.5 µA	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	SOT-363	Surface Mount	150 mA	1.25 V	Standard

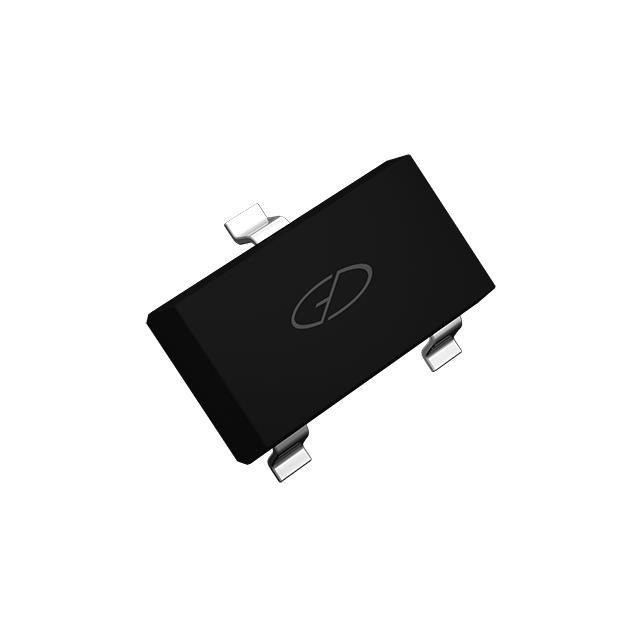

Good-Ark Semiconductor BAV99	6 ns	1 pair	Series Connection		SC-59 SOT-23-3 TO-236-3	70 V	2.5 µA	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	SOT-23	Surface Mount	200 mA	1.25 V	Standard	150 °C	-55 °C

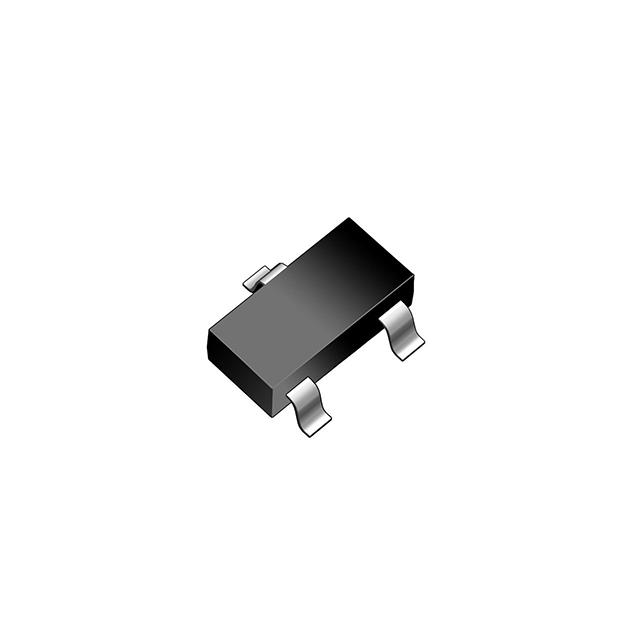

Good-Ark Semiconductor BAV99W	4 ns	1 pair	Series Connection	150 °C	SC-70 SOT-323	75 V	2.5 µA	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	SOT-323	Surface Mount	150 mA	1.25 V	Standard
