M13200 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

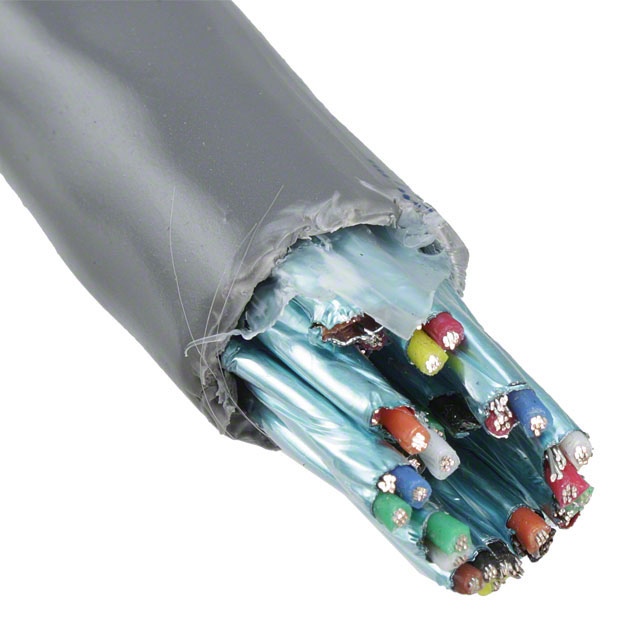

MULTI-PAIR 30COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Material | Ratings | Length | Length | Jacket (Insulation) Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Copper Tinned | UL Style 2464 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Multi-Pair | 80 °C | -20 ░C | Slate | 30 | 300 VDC | 0.402 in | 10.21 mm | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | 24 AWG | Drain Wire Rip Cord |
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Copper Tinned | UL Style 2464 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Multi-Pair | 80 °C | -20 ░C | Slate | 30 | 300 VDC | 0.402 in | 10.21 mm | 7 | 32 AWG | Foil | 0.813 mm | 0.032 in | 24 AWG | Drain Wire Rip Cord |
