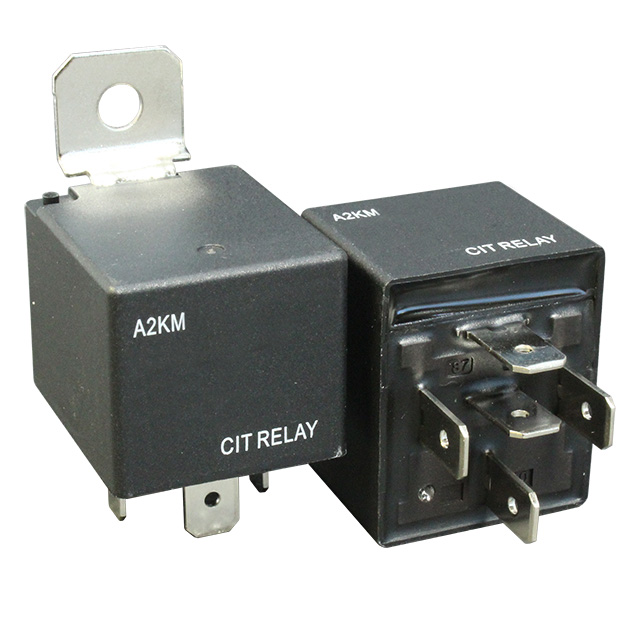

A2KM1 Series

Catalog

RELAY AUTOMOTIVE SPST 120A 24V

Part	Coil Resistance	Contact Material	Coil Power	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Release Time	Mounting Type	Features	Coil Type	Switching Voltage [Max]	Contact Form	Coil Current	Contact Rating (Current)	Operate Time	Must Operate Voltage
CIT Relay and Switch A2KM1ASQ24VDC1.6	360 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	24 VDC	2.4 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount	Magnetic Blowout Sealed - Fully	Non Latching	110 VDC	SPST-NO (1 Form A)	66.7 mA	60 A	15 ms
CIT Relay and Switch A2KM1CCQ12VDC1.6R	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount	Magnetic Blowout Resistor	Non Latching	110 VDC	SPDT (1 Form C)	133.3 mA	60 A	15 ms	7.8 VDC
CIT Relay and Switch A2KM1ACQ24VDC1.6R	360 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	24 VDC	2.4 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount	Magnetic Blowout Resistor	Non Latching	110 VDC	SPST-NO (1 Form A)	66.7 mA	60 A	15 ms
CIT Relay and Switch A2KM1ASQ12VDC1.6D	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount		Non Latching	110 VDC	SPST-NO (1 Form A)	133.3 mA	60 A	15 ms	7.8 VDC
CIT Relay and Switch A2KM1CSP12VDC1.6D	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	PC Pin	15 ms	Chassis Mount		Non Latching	110 VDC	SPDT (1 Form C)	133.3 mA	60 A	15 ms	7.8 VDC
CIT Relay and Switch A2KM1CSP24VDC1.6R	360 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	24 VDC	2.4 VDC	125 °C	-40 C	PC Pin	15 ms	Chassis Mount	Magnetic Blowout Resistor Sealed - Fully	Non Latching	110 VDC	SPDT (1 Form C)	66.7 mA	60 A	15 ms
CIT Relay and Switch A2KM1CSQ12VDC1.6R	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount	Magnetic Blowout Resistor Sealed - Fully	Non Latching	110 VDC	SPDT (1 Form C)	133.3 mA	60 A	15 ms	7.8 VDC
CIT Relay and Switch A2KM1CSQ12VDC1.6D	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount		Non Latching	110 VDC	SPDT (1 Form C)	133.3 mA	60 A	15 ms	7.8 VDC
CIT Relay and Switch A2KM1CSQ24VDC1.6D	360 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	24 VDC	2.4 VDC	125 °C	-40 C	Quick Connect - 0.250" (6.3mm)	15 ms	Chassis Mount		Non Latching	110 VDC	SPDT (1 Form C)	66.7 mA	60 A	15 ms
CIT Relay and Switch A2KM1ASP12VDC1.6R	90 Ohms	Silver Tin Oxide (AgSnO)	1.6 W	12 VDC	1.2 VDC	125 °C	-40 C	PC Pin	15 ms	Chassis Mount	Magnetic Blowout Resistor Sealed - Fully	Non Latching	110 VDC	SPST-NO (1 Form A)	133.3 mA	60 A	15 ms	7.8 VDC
