H31 Series

Catalog

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, BERYLLIUM COPPER

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Termination	Contact Material	Contact Finish	Length - Overall	Length - Overall	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Length - Overall [custom]	Length - Overall [custom]

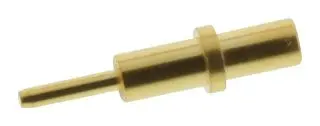

Harwin Inc. H3194-05	9 N	3 N	-55 C	125 °C	5.9 µin	0.15 µm	0.125 in	3.18 mm	Standard Tail	1.02 mm	0.04 in	4.28 mm	0.169 "	Solder	Beryllium Copper	Gold	0.526 in	13.35 mm	1.05 mm	0.89 mm	0.041 "	0.035 "	2.46 mm	0.097 in	0.093 in	2.37 mm

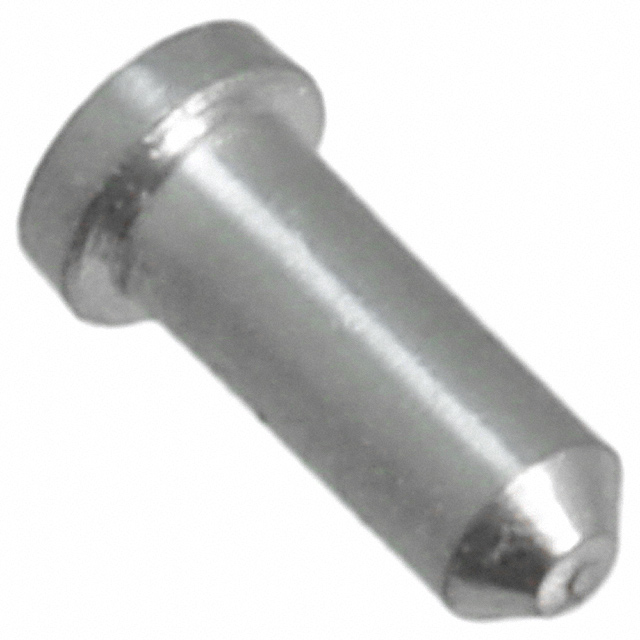

Harwin Inc. H3190-01	6 N	2 N	-55 C	125 °C			0.057 in	1.45 mm	No Tail	1.07 mm	0.042 in	2.3 mm	0.091 in	Solder	Beryllium Copper	Gold			0.51 mm	0.46 mm	0.02 in	0.018 in	1.09 mm	0.043 in	0.039 in	0.99 mm	0.118 in	3 mm
