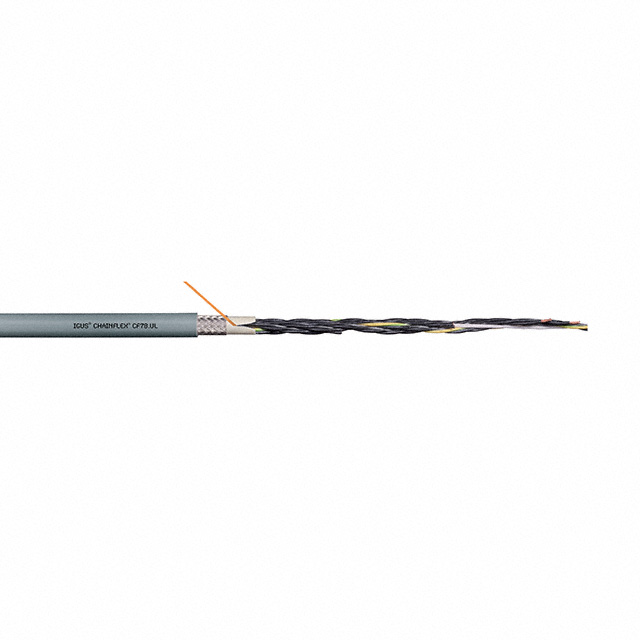

CF78-UL Series

Manufacturer: Igus

Catalog

CABLE 25CON 17AWG GRAY SHLD FEET

Part	Shield Material	Shield Coverage	Features	Voltage	Length	Number of Conductors [custom]	Ratings	Wire Gauge	Usage	Cable Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Insulation	Jacket Color	Shield Type	Jacket (Insulation) Material	Spool Size [x]	Spool Size [x]	Number of Conductors	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
Igus CF78-UL-10-25	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity	25	UL Style 21223	17 AWG	Industrial	Multi-Conductor	Copper Bare	19.99 mm	0.787 "	TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)
Igus CF78-UL-07-03	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	18 AWG	Industrial	Multi-Conductor	Copper Bare			TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	3
Igus CF78-UL-05-04	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	20 AWG	Industrial	Multi-Conductor	Copper Bare			TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	4
Igus CF78-UL-10-04	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	17 AWG	Industrial	Multi-Conductor	Copper Bare	8.99 mm	0.354 "	TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)			4
Igus CF78-UL-05-05	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	20 AWG	Industrial	Multi-Conductor	Copper Bare			TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	5
Igus CF78-UL-25-07	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	14.5 AWG	Industrial	Multi-Conductor	Copper Bare	14.5 mm	0.571 "	TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	7

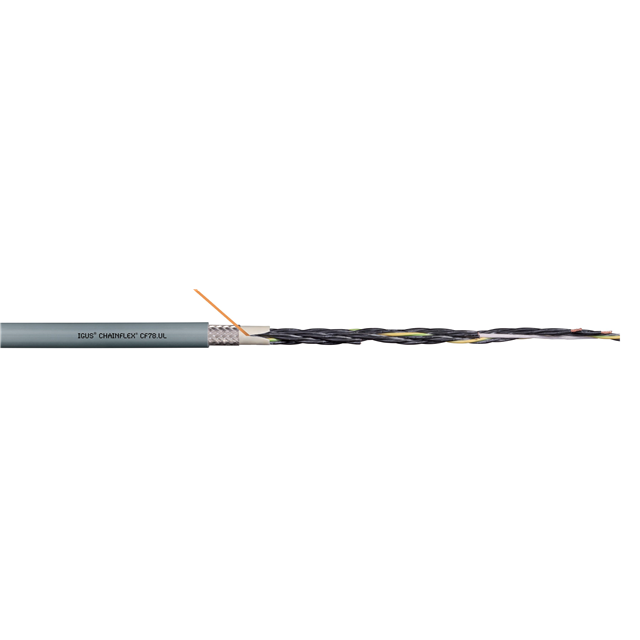

Igus CF78-UL-10-03	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	17 AWG	Industrial	Multi-Conductor	Copper Bare	8.51 mm	0.335 in	TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)			3
Igus CF78-UL-15-05	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	16 AWG	Industrial	Multi-Conductor	Copper Bare			TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	5	0.413 "	10.49 mm
Igus CF78-UL-15-04	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	16 AWG	Industrial	Multi-Conductor	Copper Bare	10.01 mm	0.394 in	TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	4
Igus CF78-UL-05-09	Copper Tinned	80 %	Abrasion Resistant Flame Retardant Oil Resistant	1 kV	Enter Number of Feet in Order Quantity		UL Style 21223	20 AWG	Industrial	Multi-Conductor	Copper Bare			TPE	Thermoplastic Elastomer	Gray	Braid	Polyurethane (PU)	304.8 m	1000 ft	9	0.433 "	11 mm
