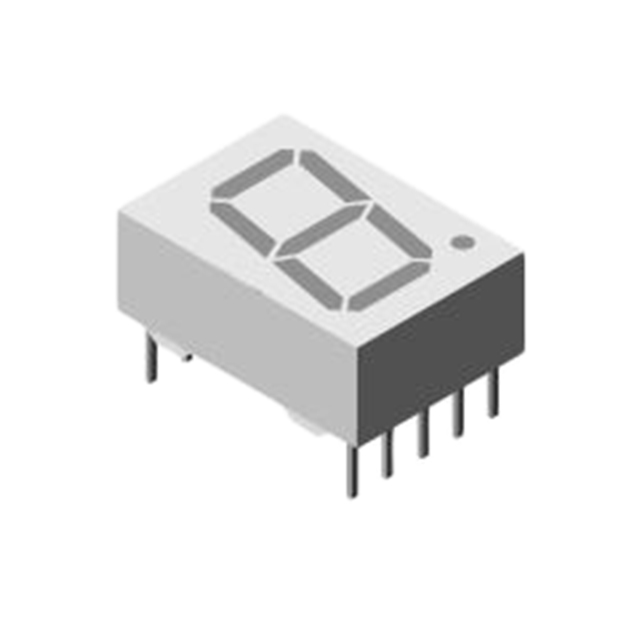

TDSO5160 Series

Catalog

DISP 7SEG 0.51" SGL OR-RED 10DIP

Part	Digit/Alpha Size	Digit/Alpha Size	Color	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Wavelength - Peak	Millicandela Rating	Display Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Common Pin
Vishay General Semiconductor - Diodes Division TDSO5160-LM	0.51 in	13 mm	Orange-Red	1	2 V	20 mA	0.6 in	15.24 mm	10-DIP	550 mW	630 nm	9 mcd	7-Segment	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	Common Cathode
Vishay General Semiconductor - Diodes Division TDSO5160	0.51 in	13 mm	Orange-Red	1	2 V	20 mA	0.6 in	15.24 mm	10-DIP	550 mW	630 nm	5 mcd	7-Segment	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	Common Cathode
