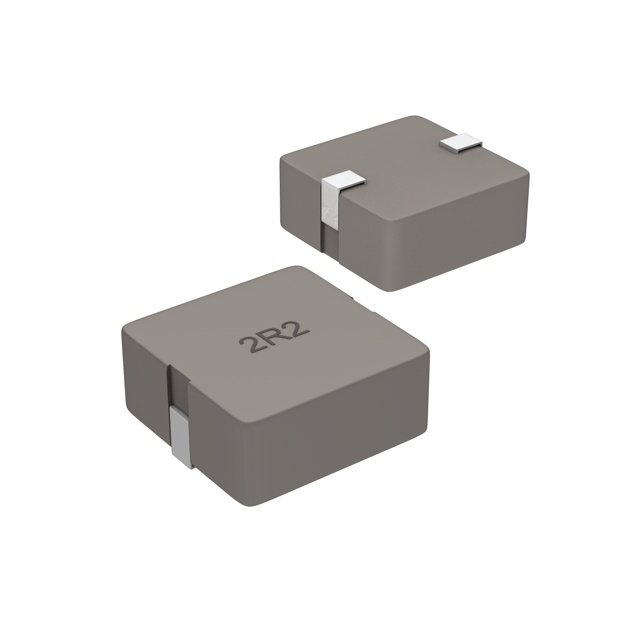

SRP4020 Series

Catalog

FIXED IND 360NH 9A 12 MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Material - Core	Mounting Type	Type	Inductance	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRP4020-R36M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	360 nH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %	12 mOhm	9 A	11 A
Bourns Inc. SRP4020-3R3M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	3.3 µH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %	48 mOhm	3.3 A	4.3 A
Bourns Inc. SRP4020-4R7M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	4.7 ÁH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %	75 mOhm	2.7 A	4 A
Bourns Inc. SRP4020-1R2M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	1.2 µH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %		5 A	5 A
Bourns Inc. SRP4020-R88M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	880 nH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %	18 mOhm	6 A	6.5 A
Bourns Inc. SRP4020-R56M	0.079 in	2 mm	Shielded	Iron	Surface Mount	Molded	560 nH	0.189 in 4.8 mm	0.157 " 4 mm	Nonstandard	100 kHz	-55 C	125 °C	20 %		7 A	8 A	14.7 mOhm
