T41444 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

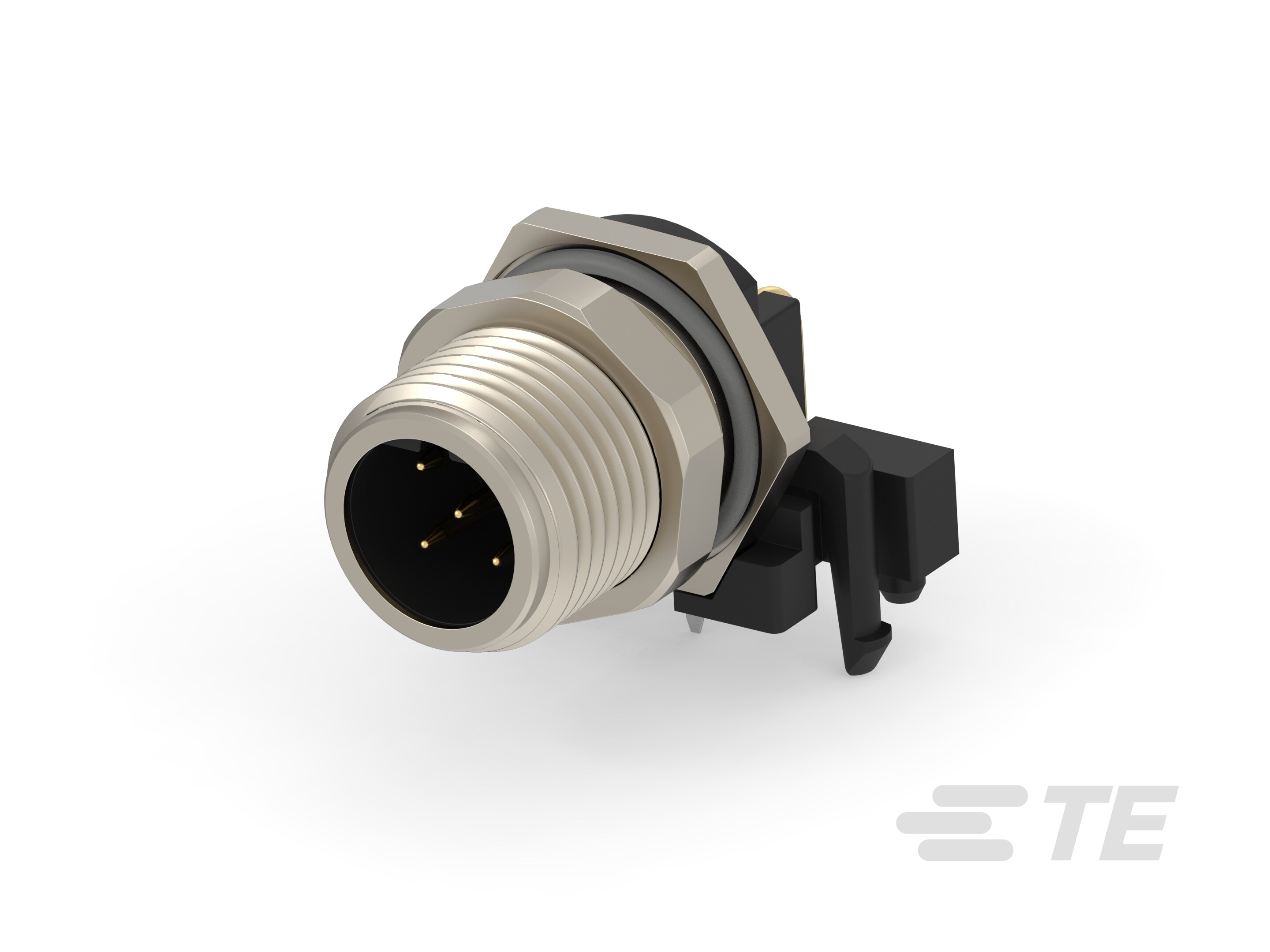

CIRCULAR METRIC CONNECTORS M12 R/A M PNL REAR B CODE 5P PCBSTD SHLD
| Part | Shell Size - Insert | Voltage Rating | Number of Positions | Color | Insert Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Orientation | Termination | Primary Material | Contact Material | Connector Type | Contact Finish Thickness - Mating | Current Rating (Amps) | Shielding | Mounting Feature | Applications | Ingress Protection | Contact Finish - Mating | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | M12-5 | 60 VDC | 5 | Silver | Nylon 6/6 Polyamide (PA66) | Panel Mount Right Angle Through Hole | 85 °C | -40 C | Copper Alloy | B | Solder | Metal | Copper Alloy | Receptacle Male Pins | Flash | 4 A | Shielded | Bulkhead - Front Side Nut | Industrial | IP67 - Dust Tight Waterproof | Gold | Threaded | Board Guide Board Lock |
 TE Connectivity AMP Connectors | M12-5 | 60 VDC | 5 | Silver | Nylon 6/6 Polyamide (PA66) | Panel Mount Right Angle Through Hole | 85 °C | -40 C | Copper Alloy | B | Solder | Metal | Copper Alloy | Receptacle Male Pins | Flash | 4 A | Unshielded | Bulkhead - Front Side Nut | Industrial | IP67 - Dust Tight Waterproof | Gold | Threaded | Board Guide Board Lock |
