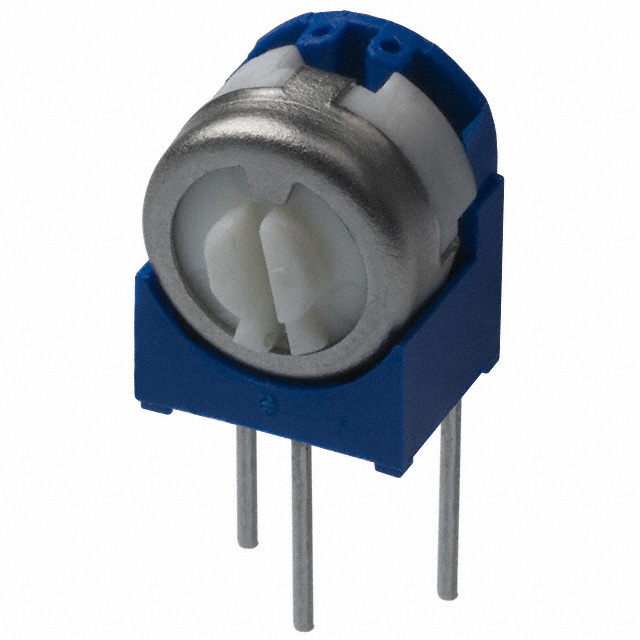

3329 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 1/4" RD TRIMPOT 500K ST CERMET

Part	Termination Style	Mounting Type	Number of Turns	Power (Watts)	Power (Watts)	Adjustment Type	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Resistive Material	Size / Dimension	Size / Dimension	Size / Dimension [diameter]	Resistance
Bourns Inc. 3329S-1-504LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	10 %	0.33 " 8.38 mm	0.26 in 6.6 mm	Cermet
Bourns Inc. 3329H-1-254	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "	250000 Ohms
Bourns Inc. 3329H-1-203LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "	20 kOhms
Bourns Inc. 3329X-1-101LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	10 %	0.33 " 8.38 mm	0.26 in 6.6 mm	Cermet				100 Ohms
Bourns Inc. 3329H-99-253LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "	25 kOhms
Bourns Inc. 3329S-1-254LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	10 %	0.33 " 8.38 mm	0.26 in 6.6 mm	Cermet				250000 Ohms
Bourns Inc. 3329U-1-504RLF	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "
Bourns Inc. 3329H-1-303LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "	30 kOhms
Bourns Inc. 3329W-1-105LF	PC Pins	Through Hole	1	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	10 %	0.33 " 8.38 mm	0.26 in 6.6 mm	Cermet				1 MOhms
Bourns Inc. 3329H-1-503	PC Pins	Through Hole	1	0.5 W	0.5 W	Top Adjustment	100 ppm/°C	10 %			Cermet	6.35 mm	Round	0.25 "	50000 Ohms
