PKM430 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 12V 396W
| Part | Package / Case | Control Features | Applications | Standard Number | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Type | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Voltage - Isolation | Number of Outputs | Power (Watts) | Efficiency | Approval Agency | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

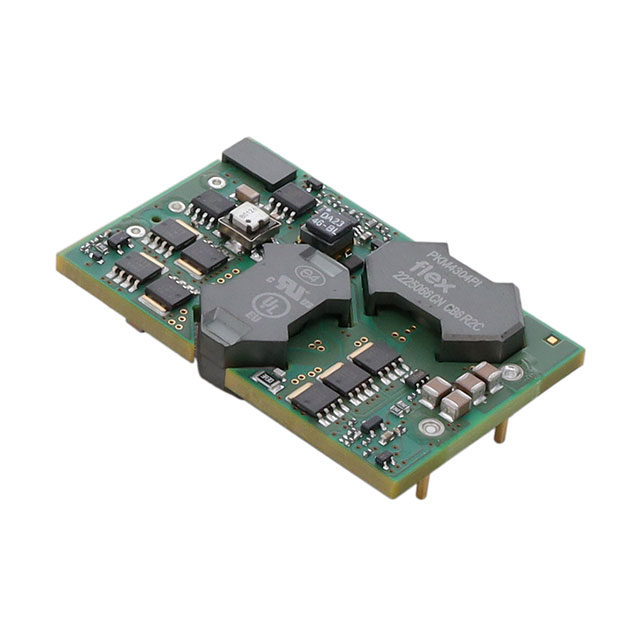

 Flex Power Modules | Quarter Brick | Active Low Enable | ITE (Commercial) | 62368-1 | Quarter Brick | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | 40 V | 12 V | Intermediate Bus Converter | 75 V | 90 °C | -40 °C | Through Hole | Baseplate Remote On/Off | 1.5 kV | 1 | 396 W | 96.7 % | CB CSA IEC TUV UL | 33 A | ||

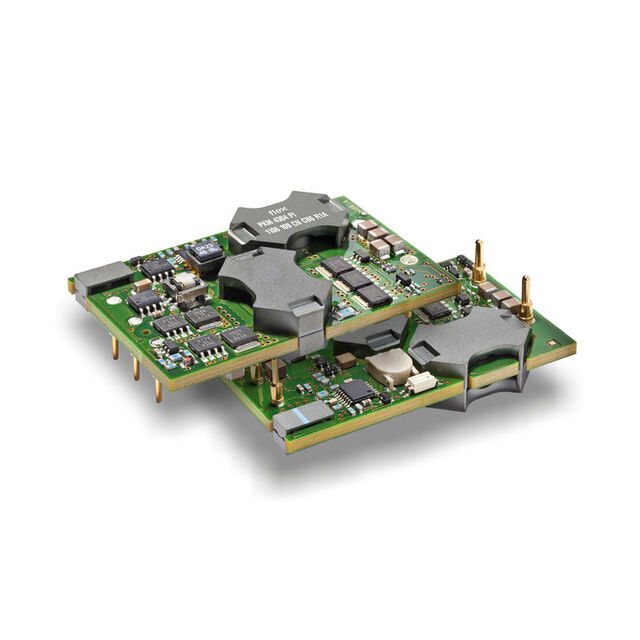

 Flex Power Modules | Quarter Brick | Active Low Enable | ITE (Commercial) | 62368-1 | Quarter Brick | 57.9 mm | 1.45 in | 0.46 in | 2.28 " | 40 V | 12 V | Intermediate Bus Converter | 75 V | 90 °C | -40 °C | Through Hole | Remote On/Off | 1.5 kV | 1 | 396 W | 96.7 % | CB CSA IEC TUV UL | 33 A | 36.8 mm | 11.6 mm |
