R30-500 Series

Catalog

ROUND STANDOFF M3X0.5 BRASS 9MM

Part	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Plating	Material	Gender	Between Board Height	Between Board Height	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall

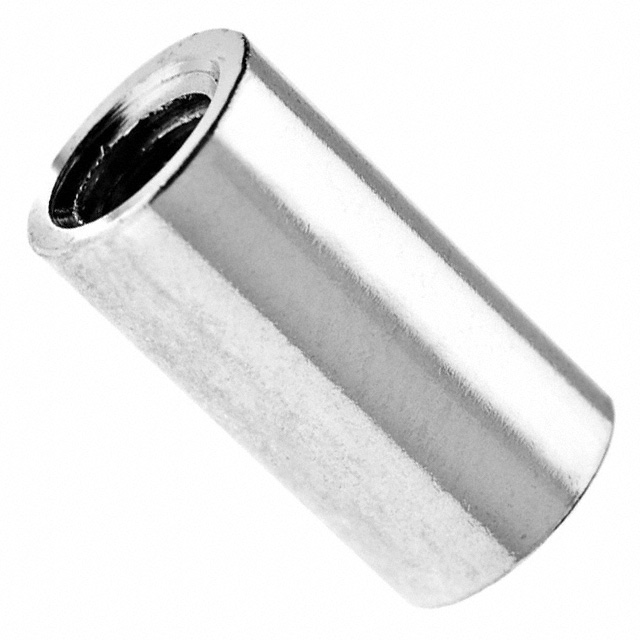

Harwin Inc. R30-5000902	9 mm	0.354 in	M3x0.5	Nickel	Brass	Female Female	0.354 in	9 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in

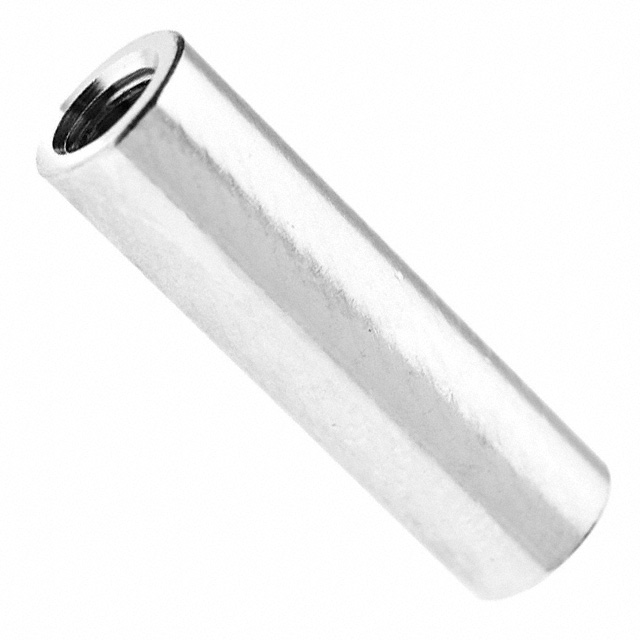

Harwin Inc. R30-5001602	16 mm	0.63 in	M3x0.5	Nickel	Brass	Female Female			Round Standoff	4.78 mm	0.1875 "	0.188 in	16 mm	0.63 in

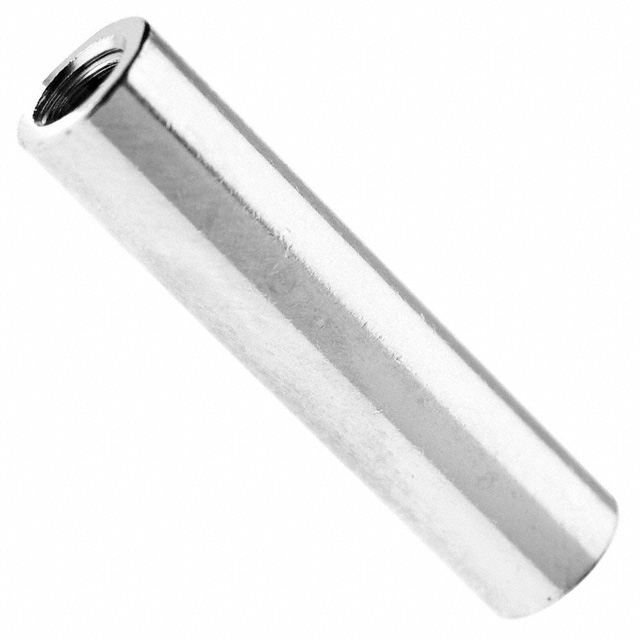

Harwin Inc. R30-5002002	20 mm	0.787 in	M3x0.5	Nickel	Brass	Female Female	0.787 "	20 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in

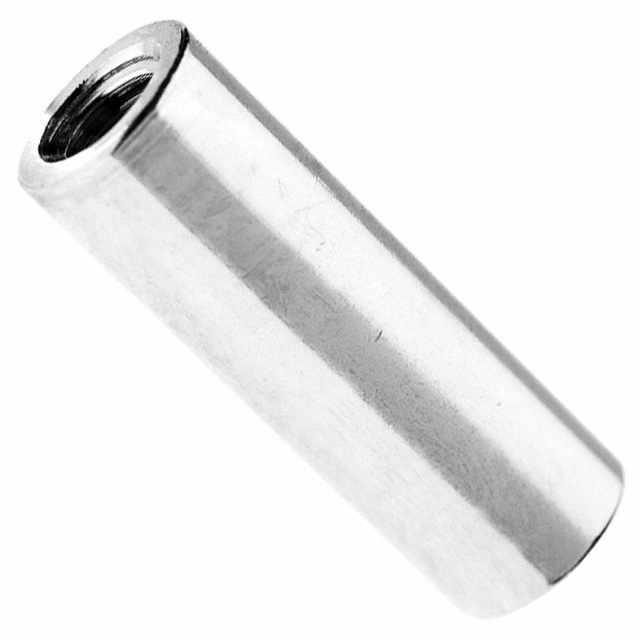

Harwin Inc. R30-5001402	14 mm	0.551 in	M3x0.5	Nickel	Brass	Female Female	0.551 in	14 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in

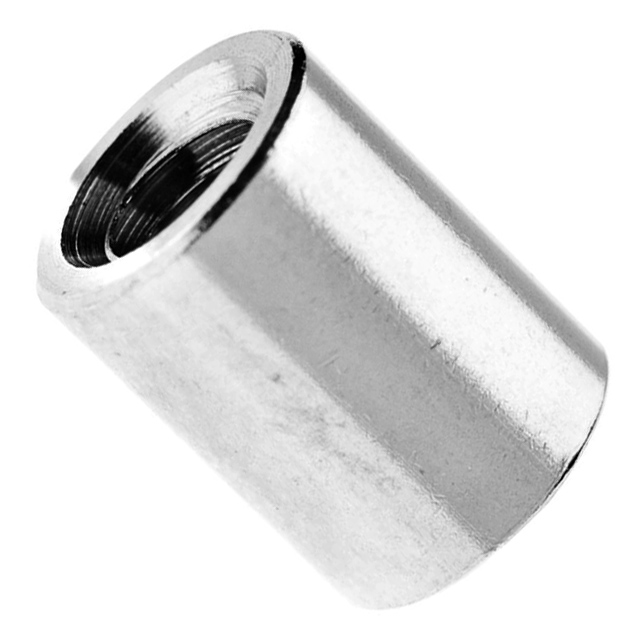

Harwin Inc. R30-5000702	7 mm	0.276 "	M3x0.5	Nickel	Brass	Female Female	0.276 in	7 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in

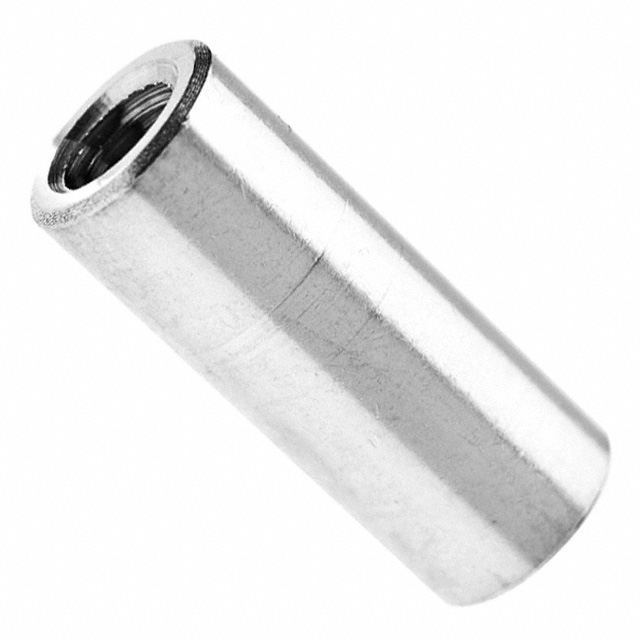

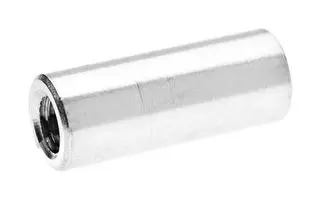

Harwin Inc. R30-5001202	12 mm	0.472 in	M3x0.5	Nickel	Brass	Female Female	0.472 in	12 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in
Harwin Inc. R30-5000802		0.315 in	M3x0.5	Nickel	Brass	Female Female	0.315 in	8 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in			8 mm

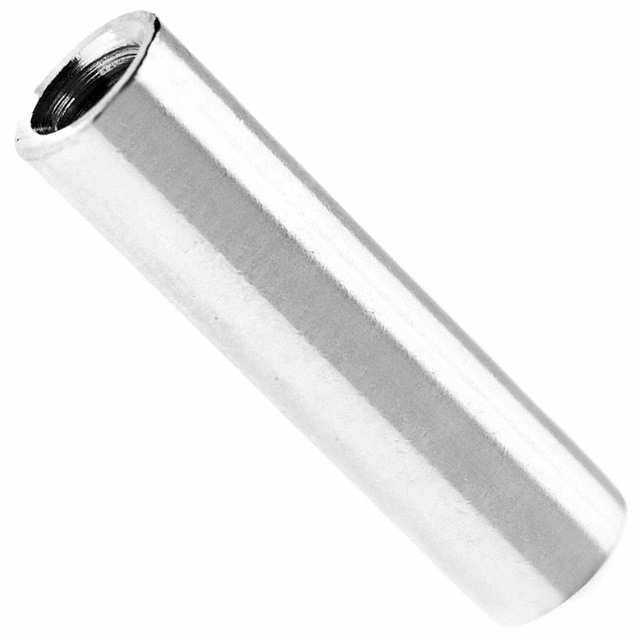

Harwin Inc. R30-5001802	18 mm	0.709 "	M3x0.5	Nickel	Brass	Female Female			Round Standoff	4.78 mm	0.1875 "	0.188 in	18 mm	0.709 in
Harwin Inc. R30-5001002			M3x0.5	Nickel	Brass	Female Female			Round Standoff	4.78 mm	0.1875 "	0.188 in	10 mm	0.394 in	10 mm	0.394 in

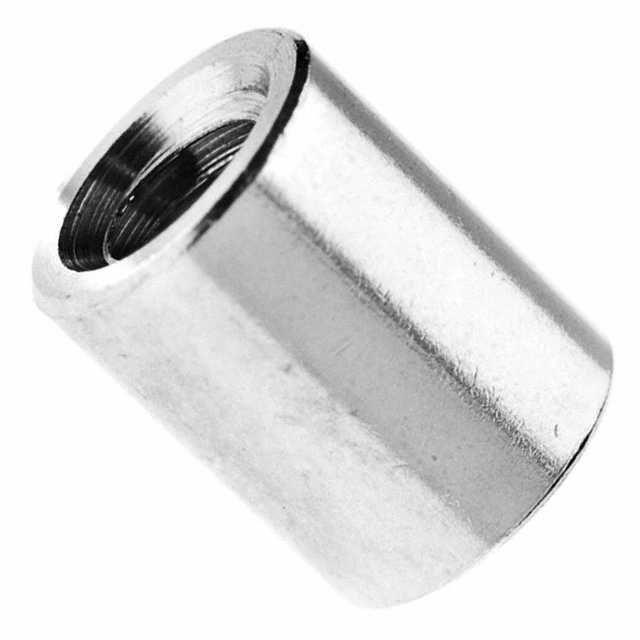

Harwin Inc. R30-5000602	6 mm	0.236 in	M3x0.5	Nickel	Brass	Female Female	0.236 in	6 mm	Round Standoff	4.78 mm	0.1875 "	0.188 in
