T41420 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

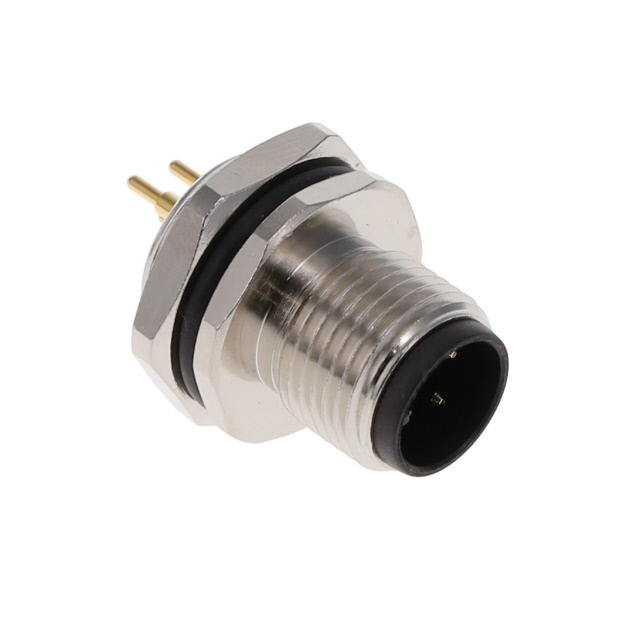

M12,FRONT MOUNTING,MALE,A CODE,3P
| Part | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Material | Voltage Rating | Shielding | Primary Material | Termination | Fastening Type | Mounting Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Ingress Protection | Material Flammability Rating | Shell Finish | Mounting Feature | Color | Orientation | Current Rating (Amps) | Connector Type | Shell Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 250 V | Unshielded | Metal | Solder | Threaded | Panel Mount Through Hole | M12-3 | 85 °C | -40 C | Gold | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel | Bulkhead - Rear Side Nut | Silver | A | 4 A | Receptacle Male Pins | Copper Alloy | |

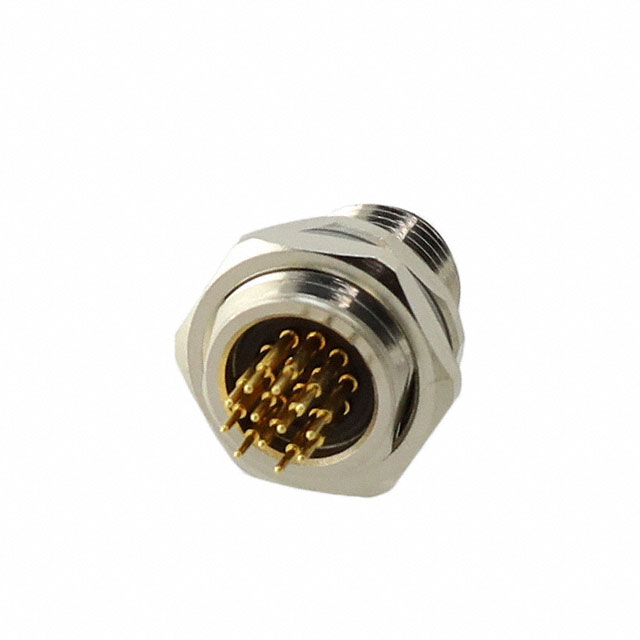

 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 30 VDC | Unshielded | Metal | Solder | Threaded | Panel Mount Through Hole | M12-12 | 85 °C | -40 C | Gold | IP67 - Dust Tight Waterproof | Nickel | Bulkhead - Rear Side Nut | Silver | A | 1.5 A | Plug Male Pins | Copper Alloy | 12 | |||
 TE Connectivity AMP Connectors | Industrial | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 30 VDC | Unshielded | Metal | Solder | Threaded | Panel Mount Through Hole | M12-8 | 85 °C | -40 C | Gold | IP67 - Dust Tight Waterproof | Nickel | Bulkhead - Front Side Nut | Silver | A | 2 A | Plug Male Pins | Copper Alloy | 8 | |||

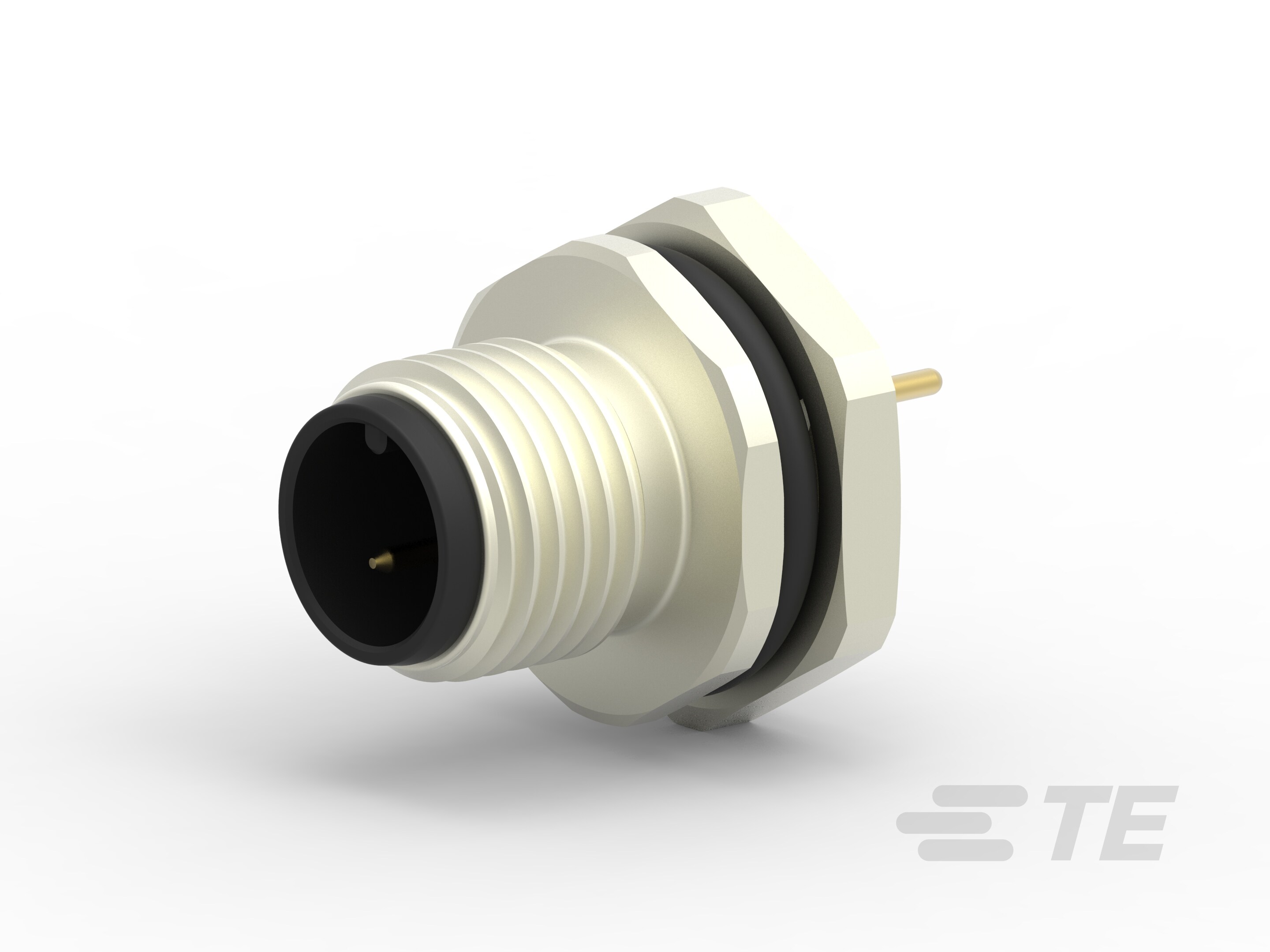

 TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 250 V | Unshielded | Metal | Solder | Threaded | Panel Mount Through Hole | M12-2 | 85 °C | -40 C | Gold | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel | Bulkhead - Rear Side Nut | Silver | A | 4 A | Receptacle Male Pins | Copper Alloy | 2 |

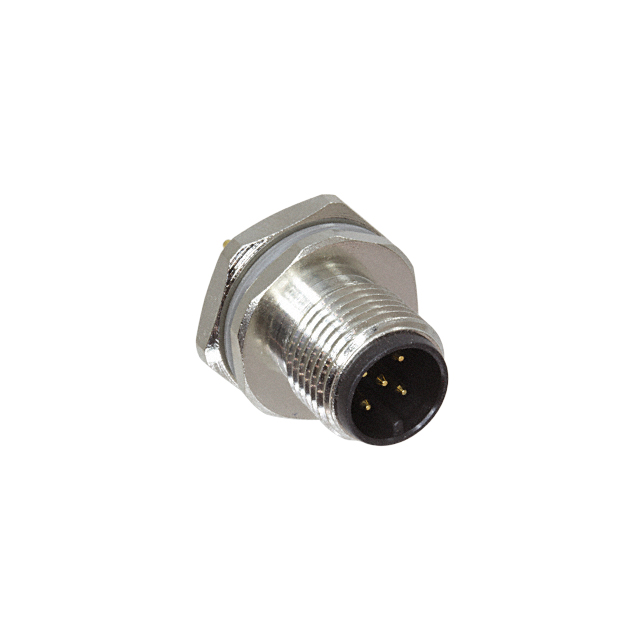

 TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 60 VDC | Unshielded | Metal | Solder | Threaded | Panel Mount Through Hole | M12-5 | 85 °C | -40 C | Gold | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel | Bulkhead - Rear Side Nut | Silver | A | 4 A | Receptacle Male Pins | Copper Alloy | 5 |
