S-19518 Series

Catalog

LDO VOLTAGE REGULATORS IC REG LINEAR 3.3V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Qualification	Voltage - Input (Max) [Max]	Control Features	Package / Case	Current - Quiescent (Iq)	Number of Regulators	Current - Output	Protection Features	Voltage Dropout (Max) [Max]	Grade	PSRR	Voltage - Output (Min/Fixed)	Output Configuration	Voltage Dropout (Max)	Package / Case [y]	Package / Case [x]

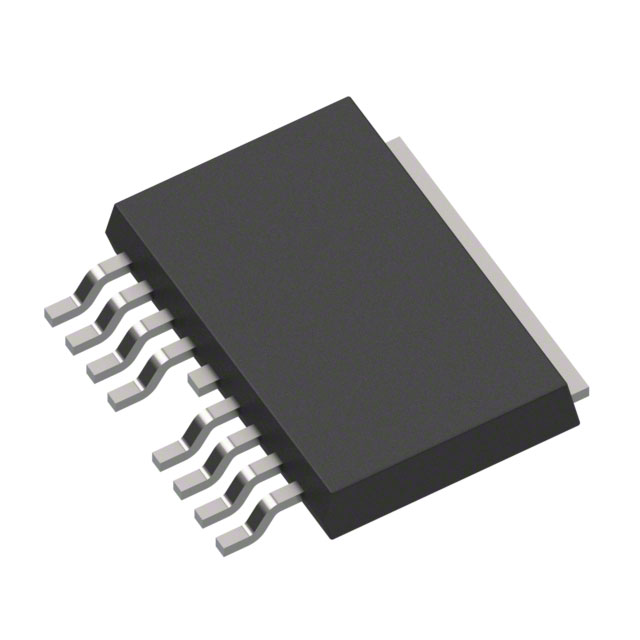

ABLIC Inc. S-19518AFKA-V9T1U4	125 °C	-40 °C	Surface Mount	TO-252-9S	AEC-Q100	36 V	Enable Reset Out Watchdog	DPAK (8 Leads + Tab) TO-252-9	9.8 µA	1	250 mA	Over Current Over Temperature	0.5 V	Automotive	60 dB	5 V	Positive
ABLIC Inc. S-19518AY2A-V9T1U4	125 °C	-40 °C	Surface Mount	TO-252-9S	AEC-Q100	36 V	Enable Reset Out Watchdog	DPAK (8 Leads + Tab) TO-252-9	9.8 µA	1	250 mA	Over Current Over Temperature		Automotive	65 dB	3.3 V	Positive	0.6 V
ABLIC Inc. S-19518AFPA-E8T1U4	125 °C	-40 °C	Surface Mount	8-HSOPA	AEC-Q100	36 V	Enable Reset Out Watchdog	8-SOIC Exposed Pad	9.8 µA	1	250 mA	Over Current Over Temperature	0.5 V	Automotive	60 dB	5 V	Positive		3.9 mm	0.154 in
ABLIC Inc. S-19518AY3A-V9T1U4	125 °C	-40 °C	Surface Mount	TO-252-9S	AEC-Q100	36 V	Enable Reset Out Watchdog	DPAK (8 Leads + Tab) TO-252-9	9.8 µA	1	250 mA	Over Current Over Temperature		Automotive	65 dB	3.3 V	Positive	0.6 V
ABLIC Inc. S-19518AFKA-E8T1U4	125 °C	-40 °C	Surface Mount	8-HSOPA	AEC-Q100	36 V	Enable Reset Out Watchdog	8-SOIC Exposed Pad	9.8 µA	1	250 mA	Over Current Over Temperature	0.5 V	Automotive	60 dB	5 V	Positive		3.9 mm	0.154 in
ABLIC Inc. S-19518AY3A-E8T1U4	125 °C	-40 °C	Surface Mount	8-HSOPA	AEC-Q100	36 V	Enable Reset Out Watchdog	8-SOIC Exposed Pad	9.8 µA	1	250 mA	Over Current Over Temperature		Automotive	65 dB	3.3 V	Positive	0.6 V	3.9 mm	0.154 in
