PX0413 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CIRCULAR CONNECTOR, IP68, REAR MOUNT, BUCCANEER 400 SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS
| Part | Color | Connector Type | Mounting Feature | Mounting Type | Current Rating (Amps) | Features | Number of Positions | Primary Material | Contact Finish - Mating | Termination | Material Flammability Rating | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Voltage Rating | Contact Material | Fastening Type | Ingress Protection | Type | Note | Contact Shape | Housing Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Black | Receptacle Female Sockets | Bulkhead - Front Side Nut | Panel Mount Through Hole | 5 A | UV Resistant | 4 | Plastic | Gold | Solder | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | 125 VAC | Copper Alloy | Threaded | IP68 IP69K | |||||
 BULGIN LIMITED | Receptacle Housing | Bulkhead - Front Side Nut | Panel Mount | UV Resistant | 12 | Plastic | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | Threaded | IP68 - Dust Tight Waterproof | For Male Pins | Contacts Not Included | Circular | Black | Crimp and Solder Cup | ||||||
 BULGIN LIMITED | Black | Receptacle Female Sockets | Bulkhead - Front Side Nut | Panel Mount Through Hole | UV Resistant | 12 | Plastic | Gold | Solder | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | 50 VAC | Copper Alloy | Threaded | IP68 IP69K | ||||||
 BULGIN LIMITED | Receptacle Housing | Bulkhead - Front Side Nut | Panel Mount | UV Resistant | 8 | Plastic | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | Threaded | IP68 - Dust Tight Waterproof | For Female Sockets | Contacts Not Included | Circular | Black | Crimp and Solder Cup | ||||||
 BULGIN LIMITED | Black | Receptacle Male Pins | Bulkhead - Front Side Nut | Panel Mount Through Hole | UV Resistant | 10 | Plastic | Gold | Solder | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | 50 VAC | Copper Alloy | Threaded | IP68 IP69K | ||||||

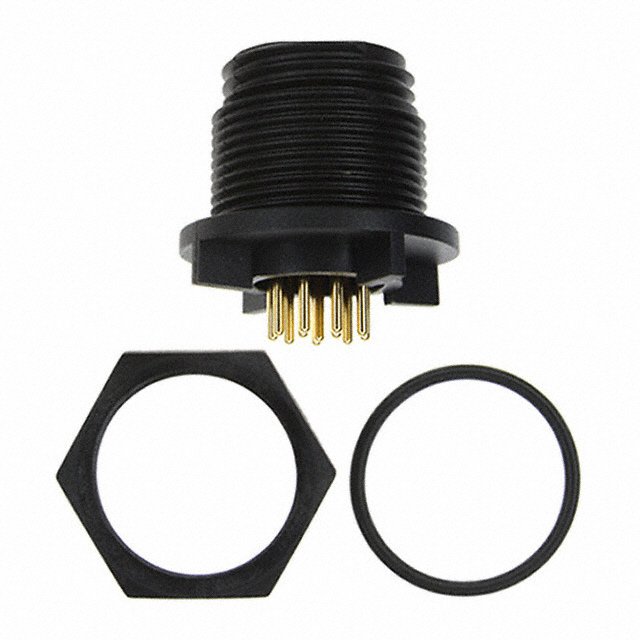

 BULGIN LIMITED | Black | Receptacle Male Pins | Bulkhead - Front Side Nut | Panel Mount Through Hole | UV Resistant | 12 | Plastic | Gold | Solder | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | 50 VAC | Copper Alloy | Threaded | IP68 IP69K | ||||||
 BULGIN LIMITED | Receptacle Housing | Bulkhead - Front Side Nut | Panel Mount | UV Resistant | 3 | Plastic | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | Threaded | IP68 - Dust Tight Waterproof | For Female Sockets | Contacts Not Included | Circular | Black | Crimp and Solder Cup | ||||||

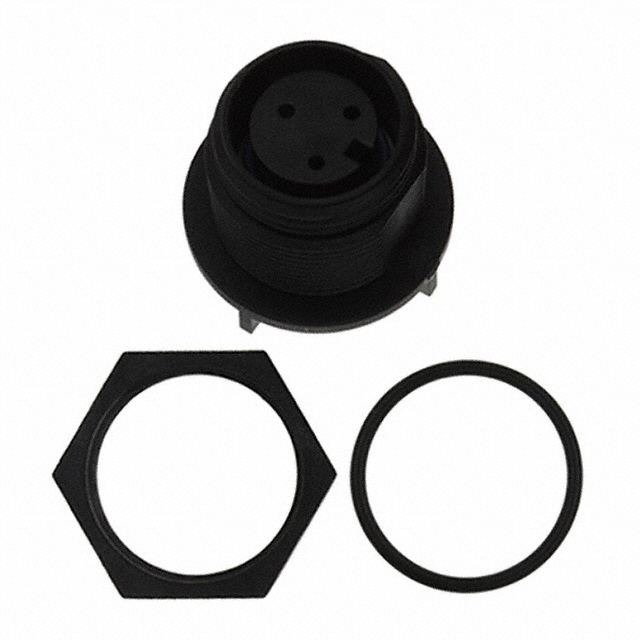

 BULGIN LIMITED | Black | Receptacle Female Sockets | Bulkhead - Front Side Nut | Panel Mount Through Hole | 8 A | UV Resistant | 3 | Plastic | Gold | Solder | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | 250 VAC | Copper Alloy | Threaded | IP68 IP69K | |||||

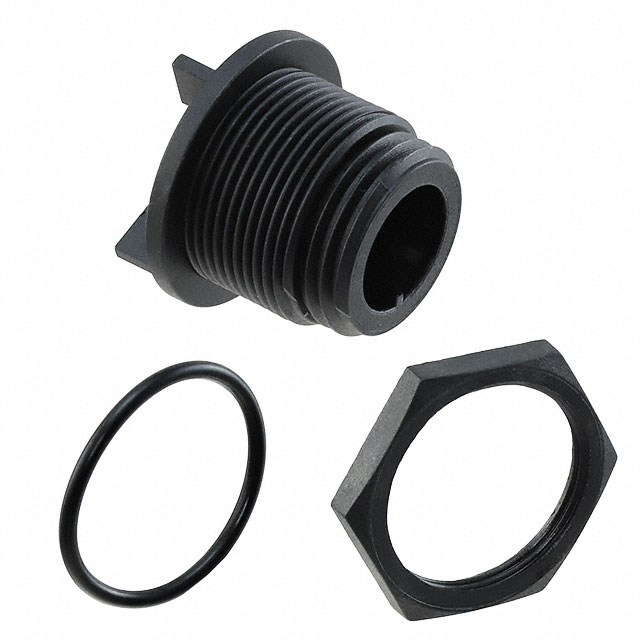

 BULGIN LIMITED | Receptacle Housing | Bulkhead - Front Side Nut | Panel Mount | UV Resistant | 10 | Plastic | UL94 V-0 | Keyed | 80 °C | -40 C | Unshielded | Threaded | IP68 - Dust Tight Waterproof | For Male Pins | Contacts Not Included | Circular | Black | Crimp and Solder Cup |
