780-M26 Series
Manufacturer: NorComp Inc.
Beta
⌘K

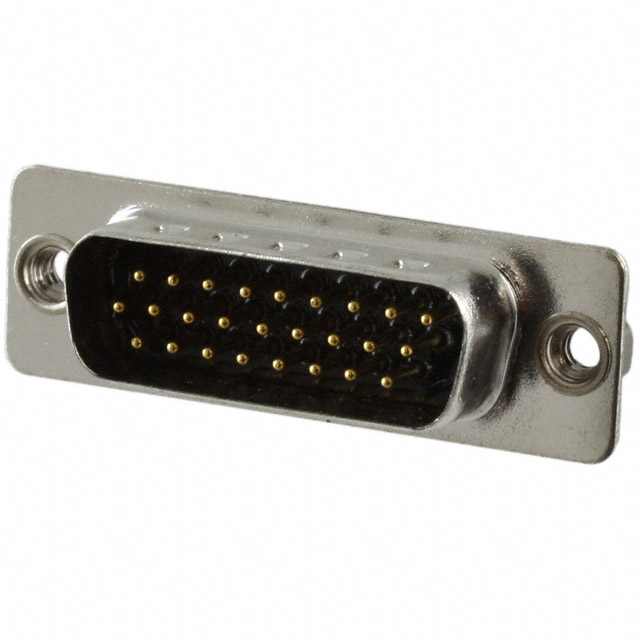

780-M26-103L011 ROHS COMPLIANT: YES
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Wire Gauge [Min] | Wire Gauge [Max] | Shell Material, Finish | Material Flammability Rating | Number of Positions | Contact Finish | Features | Contact Type | Contact Finish Thickness | Connector Type | Mounting Type | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows [custom] | Connector Style | Ingress Protection | Current Rating (Amps) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -55 C | 105 ░C | Black | 24 AWG | 28 AWG | Nickel Plated Steel | UL94 V-0 | 26 | Gold | Grounding Indents | Signal | Flash | Plug Male Pins | Panel Mount | Cable Side (4-40) | 2 | DA A | 3 | D-Sub High Density | IP67 - Dust Tight Waterproof | 3 A | |
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | Brass | -55 C | 105 ░C | Black | Nickel Plated Steel | UL94 V-0 | 26 | Gold | Grounding Indents | Signal | Flash | Plug Male Pins | Panel Mount Through Hole | Board Side (4-40) | 2 | DA A | 3 | D-Sub High Density | IP67 - Dust Tight Waterproof | 3 A | Solder | ||

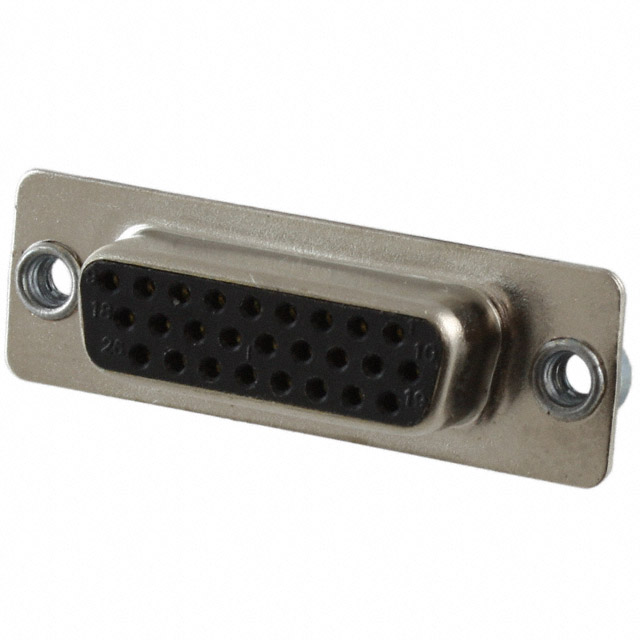

 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -55 C | 105 ░C | Black | 24 AWG | 28 AWG | Nickel Plated Steel | UL94 V-0 | 26 | Gold | Signal | Flash | Receptacle Female Sockets | Panel Mount | Cable Side | 2 | DA A | 3 | D-Sub High Density | IP67 - Dust Tight Waterproof | 3 A | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -55 C | 105 ░C | Black | 24 AWG | 28 AWG | Nickel Plated Steel | UL94 V-0 | 26 | Gold | Grounding Indents | Signal | Flash | Plug Male Pins | Panel Mount | Housing/Shell (Unthreaded) | 2 | DA A | 3 | D-Sub High Density | IP67 - Dust Tight Waterproof | 3 A |
