PPPC402 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 80POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height
Sullins Connector Solutions PPPC402LJBN-RC	Square	Phosphor Bronze	Flash	Polyester	80	Female Socket	0.1 "	2.54 mm	Push-Pull	Solder	250 V	0.2 in	5.08 mm	0.1 in	2.54 mm	All	Gold	0.124 in	3.15 mm	2	Header	Black	-40 C	105 ░C	Right Angle Through Hole	UL94 V-0	Flash	Gold	3 A

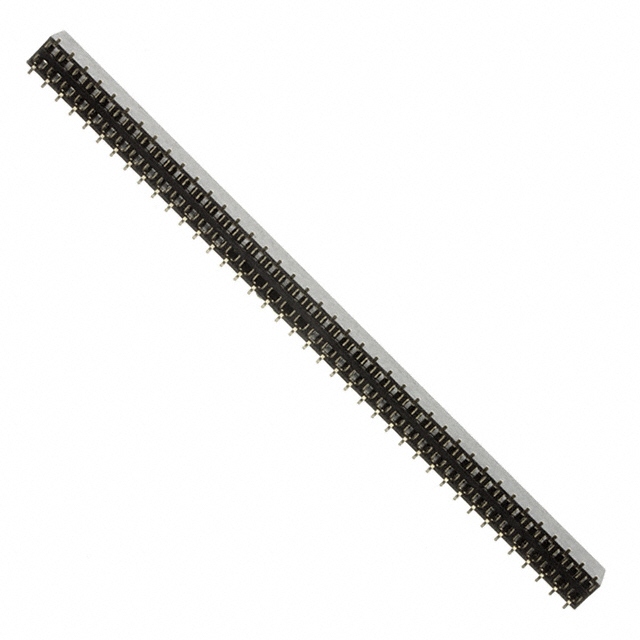

Sullins Connector Solutions PPPC402KFMS	Square	Phosphor Bronze	Flash	Polyester	80	Female Socket	0.1 "	2.54 mm	Push-Pull	Solder	250 V	0.299 "		0.1 in	2.54 mm	All	Gold			2	Header	Black	-40 C	125 °C	Surface Mount	UL94 V-0	Flash	Gold	3 A	7.6 mm
Sullins Connector Solutions PPPC402LFBN-RC	Square	Phosphor Bronze	Flash	Polyester	80	Female Socket	0.1 "	2.54 mm	Push-Pull	Solder	250 V			0.1 in	2.54 mm	All	Gold			2	Header	Black	-40 C	105 ░C	Through Hole	UL94 V-0	Flash	Gold	3 A	8.51 mm	0.126 "	3.2 mm	0.335 "
Sullins Connector Solutions PPPC402LJBN	Square	Phosphor Bronze	Flash	Polyester	80	Female Socket	0.1 "	2.54 mm	Push-Pull	Solder	250 V	0.2 in	5.08 mm	0.1 in	2.54 mm	All	Gold	0.124 in	3.15 mm	2	Header	Black	-40 C	105 ░C	Right Angle Through Hole	UL94 V-0	Flash	Gold	3 A
