S7B-XH-A Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

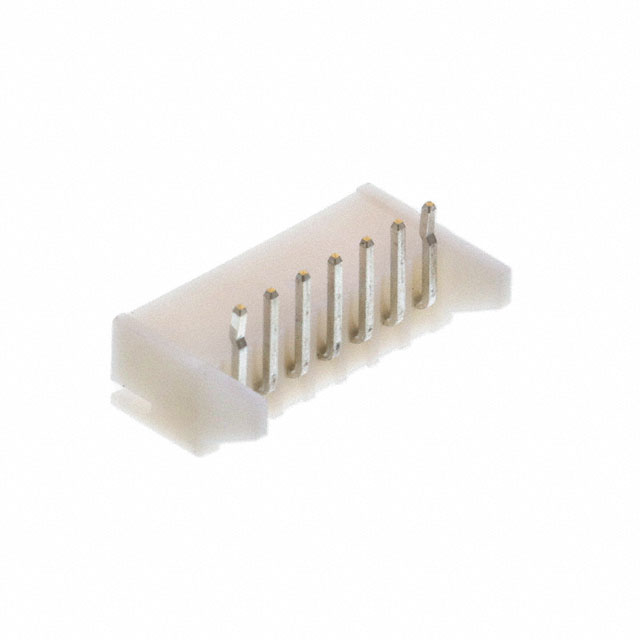

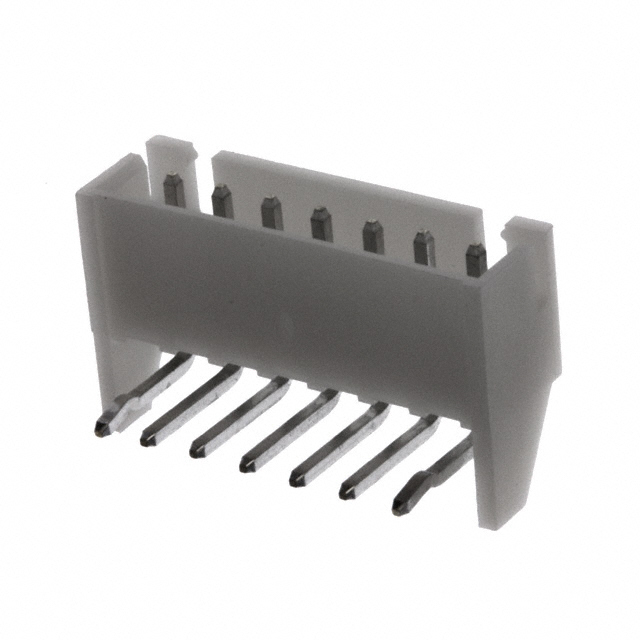

CONN HEADER R/A 7POS 2.5MM
| Part | Shrouding | Termination | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Fastening Type | Current Rating (Amps) | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Material | Connector Type | Insulation Color | Contact Finish - Post | Number of Rows | Contact Material | Number of Positions Loaded | Style | Voltage Rating | Contact Shape | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Press-Fit Solder | 6.1 mm | 0.24 in | UL94 V-0 | Detent Lock | 3 A | Male Pin | 85 °C | -25 °C | Right Angle Through Hole | 7 | 2.5 mm | 0.098 in | Nylon 6/6 Polyamide (PA66) | Header | Natural | Tin | 1 | Brass | All | Board to Cable/Wire | 250 V | Square | 0.134 " | 3.4 mm |
 JST Sales America Inc. | Shrouded - 4 Wall | Press-Fit Solder | 6.1 mm | 0.24 in | UL94 V-0 | Detent Lock | 3 A | Male Pin | 85 °C | -25 °C | Right Angle Through Hole | 7 | 2.5 mm | 0.098 in | Nylon 6/6 Polyamide (PA66) | Header | Natural | Tin | 1 | Brass | All | Board to Cable/Wire | 250 V | Square | 0.134 " | 3.4 mm |
