807-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

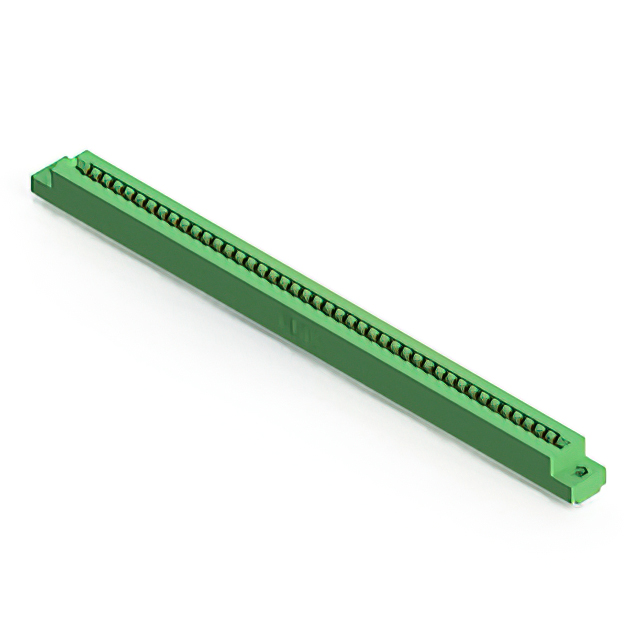

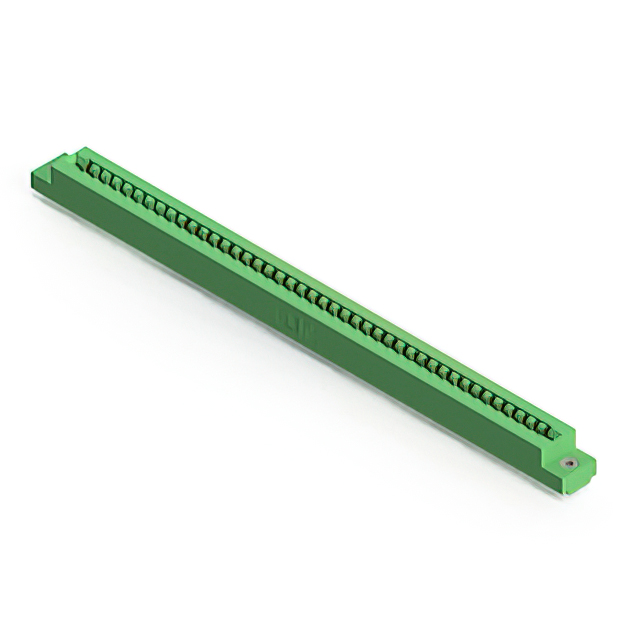

CONN EDGE DUAL FMALE 86POS 0.156
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Rows [custom] | Contact Type | Number of Positions | Termination | Pitch | Pitch | Mounting Type | Contact Material | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Card Type | Gender | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions/Bay/Row | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 °C | -40 C | Green | 2 | Semi Bellows | 86 | Solder | 3.96 mm | 0.156 in | Right Angle Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 43 | Dual | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 43 | Single | 0.25 Ám | 10 Áin | 1 | |
EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 43 | Single | 1 | |||||
 EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Solder | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 43 | Single | 0.25 Ám | 10 Áin | 1 | |
 EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Solder | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Tin | 43 | Single | 1 | |||
 EDAC Inc. | 125 °C | -40 C | Green | 2 | Semi Bellows | 86 | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 43 | Dual | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Solder | 3.96 mm | 0.156 in | Right Angle Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Gold | 43 | Single | 0.25 Ám | 10 Áin | 1 | |||
 EDAC Inc. | 125 °C | -40 C | Green | 2 | Semi Bellows | 86 | Solder Eyelet(s) | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 43 | Dual | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 125 °C | -40 C | Green | Semi Bellows | 43 | Solder Eyelet(s) | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Tin | 43 | Single | 1 | |||
 EDAC Inc. | 125 °C | -40 C | Green | 2 | Semi Bellows | 86 | Solder | 3.96 mm | 0.156 in | Through Hole | Copper Alloy | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 43 | Dual | 0.25 Ám | 10 Áin |
