L777RRC37 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

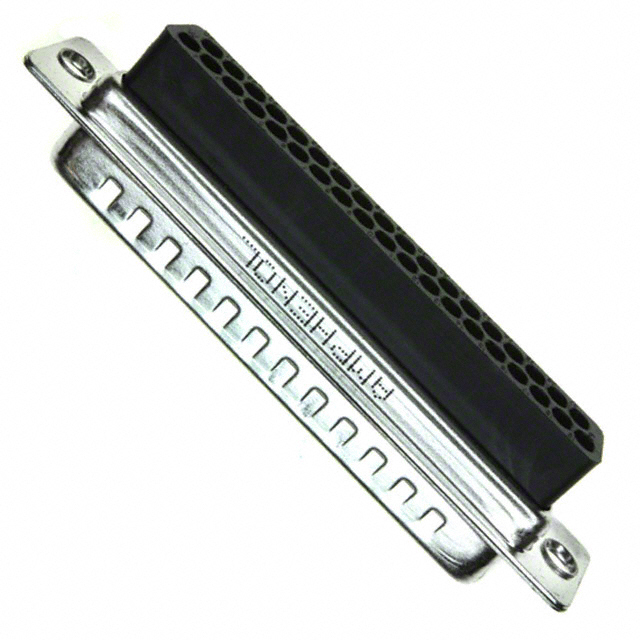

CONN D-SUB HOUSING PLUG 37POS
| Part | Color | Mounting Type | Features | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Positions | Shell Finish Thickness | Shell Finish Thickness | Number of Rows [custom] | Note | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Contact Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Free Hanging (In-Line) | Grounding Indents | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Housing/Shell (Unthreaded) | 37 | 2.54 µm | 100 µin | 2 | Contacts Not Included | 4 | DC C | Plug for Male Contacts | Signal | D-Sub |
 Amphenol ICC (Commercial Products) | Black | Free Hanging (In-Line) | Grounding Indents | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Mating Side Female Screwlock (M3) | 37 | 2.54 µm | 100 µin | 2 | Contacts Not Included | 4 | DC C | Plug for Male Contacts | Signal | D-Sub |
