LPPB031 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 3POS 0.05 GOLD PCB R/A
| Part | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Insulation Material | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Number of Rows | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post | Mounting Type | Termination | Contact Type | Fastening Type | Number of Positions Loaded | Connector Type | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

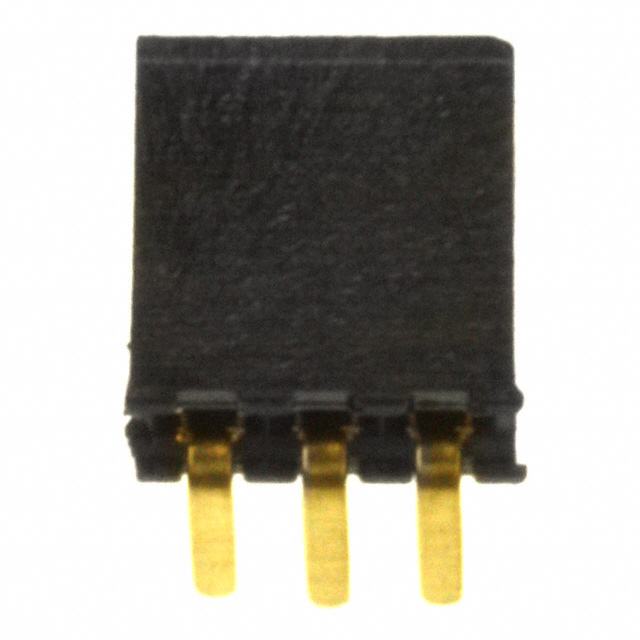

 Sullins Connector Solutions | Phosphor Bronze | Square | -40 C | 105 ░C 125 °C | Flash | Liquid Crystal Polymer (LCP) | 0.087 " | 2.2 mm | Gold | 1.27 mm | 0.05 in | Flash | UL94 V-0 | 1 | Gold | 0.091 " | 2.3 mm | Right Angle Through Hole | Solder | Female Socket | Push-Pull | All | Header | |

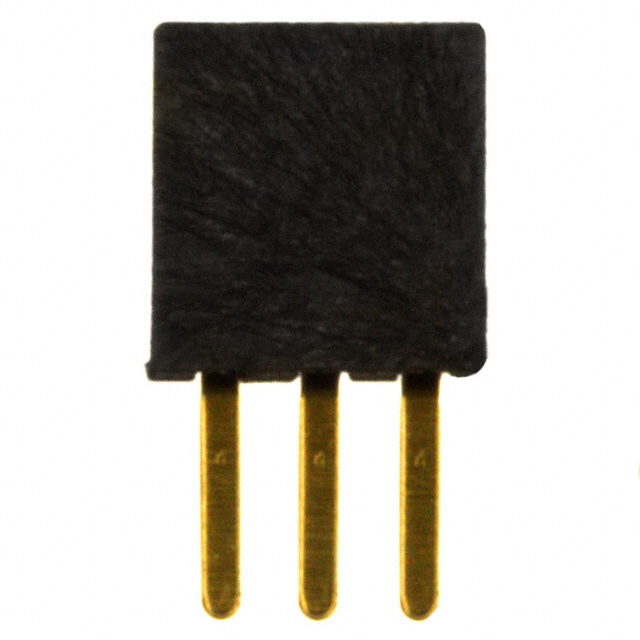

 Sullins Connector Solutions | Phosphor Bronze | Square | -40 C | 105 ░C 125 °C | Flash | Liquid Crystal Polymer (LCP) | 0.177 in | 4.5 mm | Gold | 1.27 mm | 0.05 in | Flash | UL94 V-0 | 1 | Gold | 3 mm | Through Hole | Solder | Female Socket | Push-Pull | All | Header | 0.118 in |
