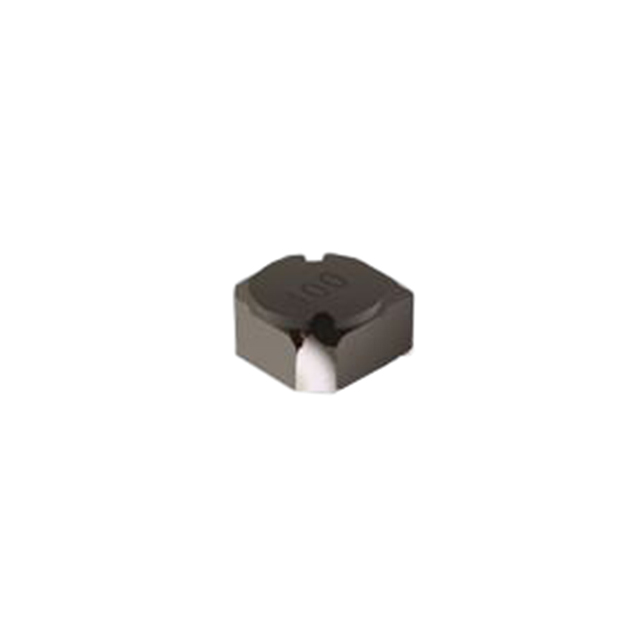

SRR4528A Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND,5X5X2.8MM,8.2UH,30%,2.12A,SHD,SMD /TAPE & REEL - 7" REEL
| Part | DC Resistance (DCR) | Current - Saturation (Isat) | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Inductance | Package / Case | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Frequency - Self Resonant | Material - Core | Ratings | Mounting Type | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 70 mOhm | 1.22 A | 2.12 A | 100 kHz | 30 % | 8.2 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 38 MHz | Ferrite | AEC-Q200 | Surface Mount | |
 Bourns Inc. | 260 mA | 430 mA | 100 kHz | 20 % | 180 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 7 MHz | Ferrite | AEC-Q200 | Surface Mount | 1.128 Ohm | |
Bourns Inc. | 552 mOhm | 390 mA | 590 mA | 100 kHz | 20 % | 82 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 11 MHz | Ferrite | AEC-Q200 | Surface Mount | |
Bourns Inc. | 1.49 A | 2.39 A | 100 kHz | 30 % | 5.6 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 50 MHz | Ferrite | AEC-Q200 | Surface Mount | 47 mOhm | |
Bourns Inc. | 2.5 A | 4.2 A | 100 kHz | 30 % | 1.8 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 78 MHz | Ferrite | AEC-Q200 | Surface Mount | 20 mOhm | |
Bourns Inc. | 410 mA | 700 mA | 100 kHz | 20 % | 68 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 12 MHz | Ferrite | AEC-Q200 | Surface Mount | 452 mOhm | |
Bourns Inc. | 3.04 A | 4.82 A | 100 kHz | 30 % | 1.2 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 82 MHz | Ferrite | AEC-Q200 | Surface Mount | 17 mOhm | |
 Bourns Inc. | 1.37 A | 2.25 A | 100 kHz | 30 % | 6.8 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 45 MHz | Ferrite | AEC-Q200 | Surface Mount | 58 mOhm | |
Bourns Inc. | 700 mOhm | 300 mA | 0.53 A | 100 kHz | 20 % | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 9 MHz | Ferrite | AEC-Q200 | Surface Mount | ||
Bourns Inc. | 850 mA | 1.28 A | 100 kHz | 20 % | 18 µH | Nonstandard Corner Terminals | Shielded | 125 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | 23 MHz | Ferrite | AEC-Q200 | Surface Mount | 136 mOhm |
