AR16-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

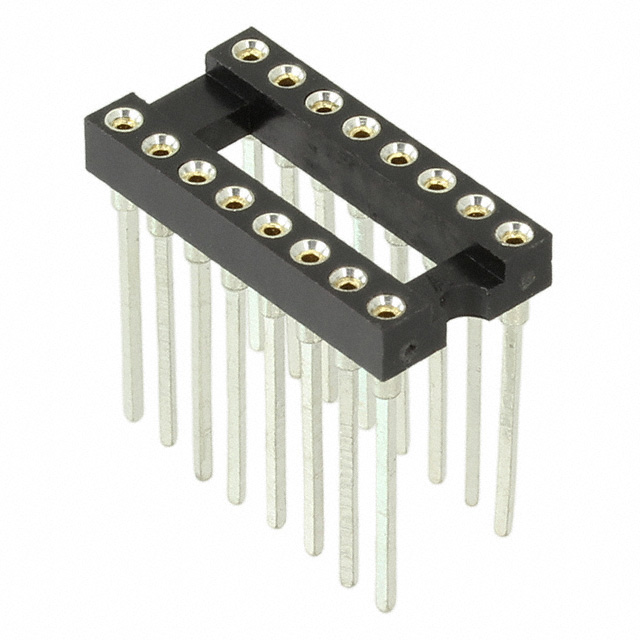

CONN IC DIP SOCKET 16POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Type | Type | Type | Features | Mounting Type | Contact Finish - Post | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Housing Material | Contact Material - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Pitch - Mating | Pitch - Mating | Termination | Contact Material - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | 7.62 mm | 0.3 in | DIP | Open Frame | Through Hole | Tin | 0.1 in | 2.54 mm | -40 C | 105 ░C | Gold | Polyester Thermoplastic | Beryllium Copper | 200 µin | 5.08 µm | 2 | 16 | 8 | 0.1 " | 2.54 mm | Wire Wrap | Beryllium Copper |
