3SE5112 Series

Manufacturer: Siemens

Catalog

SWITCH SNAP ACTION DPST 6A 125V

Part	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Ingress Protection	Mechanical Life	Switch Function	Overtravel	Overtravel	Circuit	Current Rating (Amps)	Electrical Life	Actuator Type	Accessory Type
Siemens 3SE51120CD02	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom	0.118 "	3 mm	DPST-NO/NC	3 A 6 A	100000 Cycles	Roller Plunger
Siemens 3SE51120LD02	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom	0.118 "	3 mm	3PST-2NC/1NO	3 A 6 A	100000 Cycles	Roller Plunger

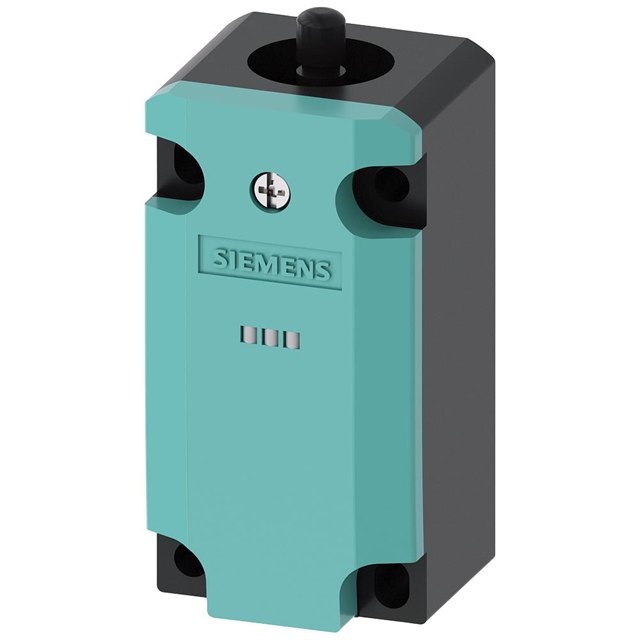

Siemens 3SE51121KA00		Screw Terminal	24 V	Chassis Mount	60 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom			3PST-2NC/1NO	3 A	10000000 Cycles	Round (Pin Plunger)
Siemens 3SE51120LC02	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom	0.118 "	3 mm	3PST-2NC/1NO	3 A 6 A	100000 Cycles	Round (Pin Plunger)
Siemens 3SE51120MA001CA0	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom			3PST-2NC/1NO	3 A 6 A	100000 Cycles	Round (Pin Plunger)
Siemens 3SE51120CH62	125 V	Screw Terminal	30 V	Chassis Mount	85 °C	-25 °C		IP66 IP67	100000 Cycles	Off-Mom On-Mom			DPST-NO/NC	3 A 6 A	100000 Cycles	Side Rotary Adjustable Roller
Siemens 3SE51120LA001CA0	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom			3PST-2NC/1NO	3 A 6 A	100000 Cycles	Round (Pin Plunger)
Siemens 3SE51120KE01	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	1020 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom			3PST-2NC/1NO	3 A 6 A	100000 Cycles	Roller Top Rotary
Siemens 3SE51120LA00	125 V	Screw Terminal	24 V	Chassis Mount	85 °C	-25 °C	2039 gf	IP66 IP67	15000000 Cycles	Off-Mom On-Mom			3PST-2NC/1NO	3 A 6 A	100000 Cycles	Round (Pin Plunger)

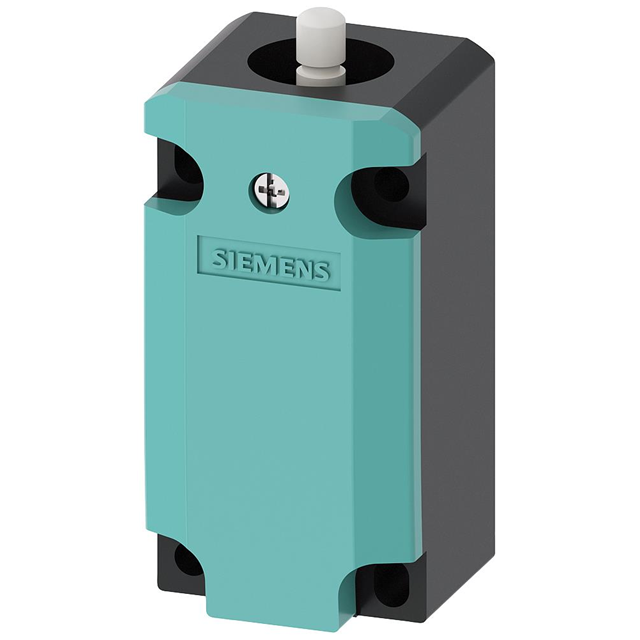

Siemens 3SE51120AA00																	Cover
