AWHW2-40 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

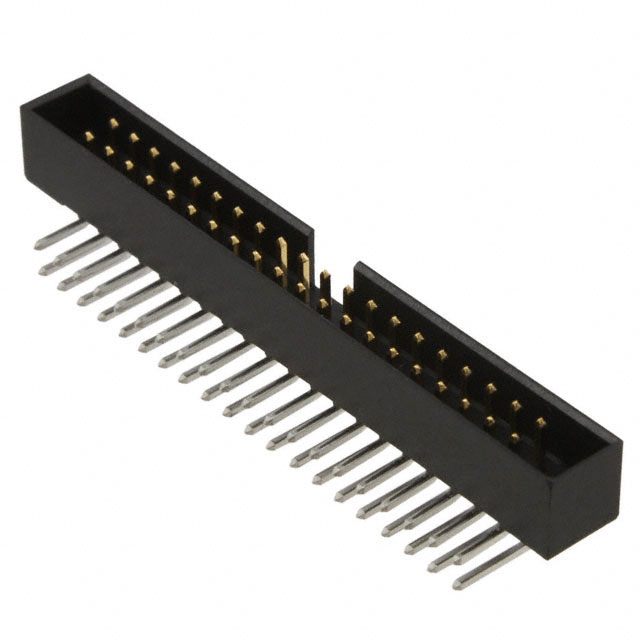

CONN HEADER R/A 40POS 2MM
| Part | Current Rating (Amps) | Number of Rows [custom] | Insulation Material | Contact Material | Connector Type | Contact Finish Thickness - Mating | Contact Type | Features | Fastening Type | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions Loaded | Style | Contact Length - Mating | Contact Length - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Length - Post [custom] | Contact Length - Post | Contact Shape | Insulation Height | Insulation Height | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 1.5 A | 2 | Glass Filled Nylon 9T Polyamide (PA9T) | Brass | Header | Flash | Male Pin | Keying Slot | Push-Pull | Shrouded - 4 Wall | Solder | 0.079 " | 2 mm | UL94 V-0 | All | Board to Cable/Wire | 4 mm | 0.157 in | Right Angle Through Hole | 2 mm | 0.079 in | 40 | -40 C | 105 ░C | Black | 0.11 in | 2.79 mm | Square | 0.217 in | 5.51 mm | Gold |
 Assmann WSW Components | 1.5 A | 2 | Glass Filled Nylon 9T Polyamide (PA9T) | Brass | Header | Flash | Male Pin | Keying Slot | Push-Pull | Shrouded - 4 Wall | Solder | 0.079 " | 2 mm | UL94 V-0 | All | Board to Cable/Wire | 4 mm | 0.157 in | Through Hole | 2 mm | 0.079 in | 40 | -40 C | 105 ░C | Black | 0.11 in | 2.79 mm | Square | 0.226 in | 5.74 mm | Gold |
