79004 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

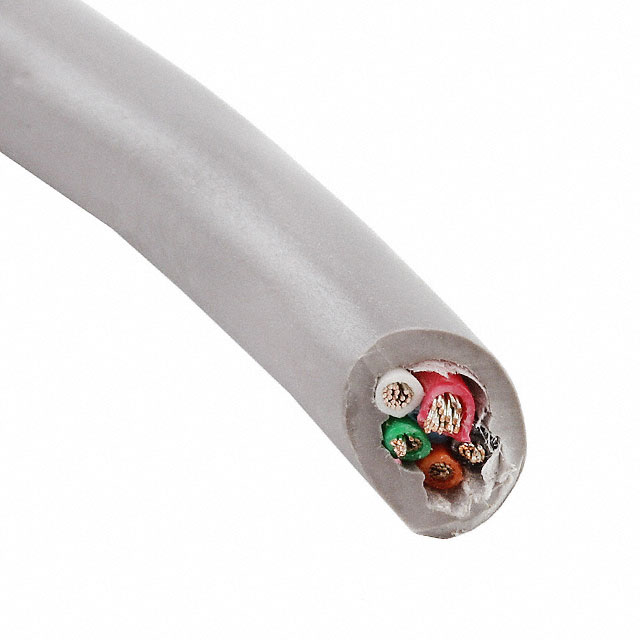

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, UNSHIELDED, 5 CONDUCTOR, 20 AWG, 0.51 MM², 100 FT, 30.5 M
| Part | Voltage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Ratings | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Features | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 600 V | Multi-Conductor | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Polyphenylene Ether Modified (mPPE) | 5.69 mm | 0.224 " | Slate | 20 AWG | ISO 10993 | Copper Tinned | 10 | 30 AWG | 100 ft | 30.5 m | Biological Compatibility | 5 |
ALPHA WIRE | 600 V | Multi-Conductor | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Polyphenylene Ether Modified (mPPE) | 5.69 mm | 0.224 " | Slate | 20 AWG | ISO 10993 | Copper Tinned | 10 | 30 AWG | Biological Compatibility | 5 |
