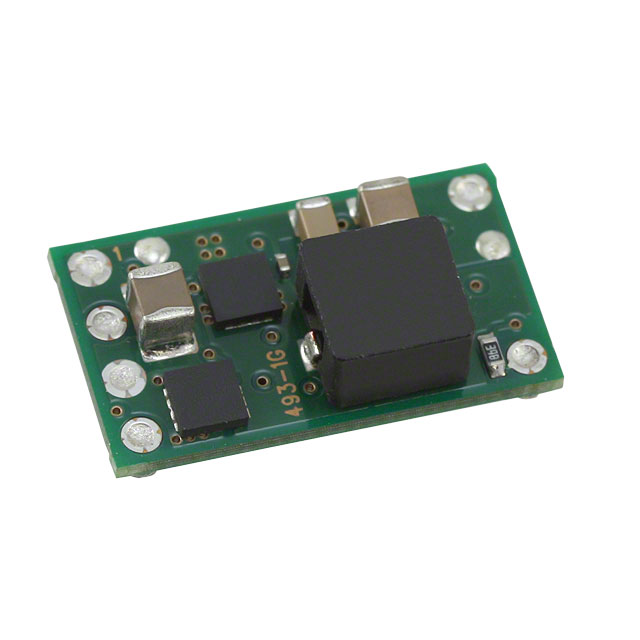

PTH03050 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 0.8-2.5V 15W
| Part | Efficiency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Min) [Min] | Features | Type | Mounting Type | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 94 % | 0.8 V | 2.5 V | 1 | 85 °C | -40 C | 6-SMD Module | 3.65 V | 6 A | 15 W | 2.95 V | OCP OTP Remote On/Off UVLO | Non-Isolated PoL Module | Surface Mount | ITE (Commercial) | 0.87 in | 22.1 mm | 12.7 mm | 0.34 in | 0.5 " | 8.6 mm | |
 ARTESYN / Advanced Energy | 94 % | 0.8 V | 2.5 V | 1 | 85 °C | -40 C | 6-SMD Module | 3.65 V | 6 A | 15 W | 2.95 V | Remote On/Off SCP UVLO | Non-Isolated PoL Module | Surface Mount | ITE (Commercial) | 0.87 in | 0.34 in | 0.5 " | 8.5 mm 12.7 mm 22.1 mm |
