637-W15 Series
Manufacturer: EDAC Inc.
Beta
⌘K

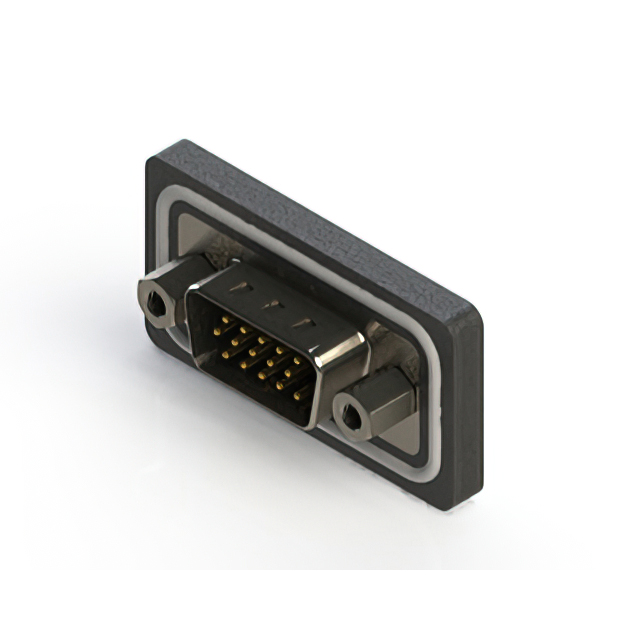

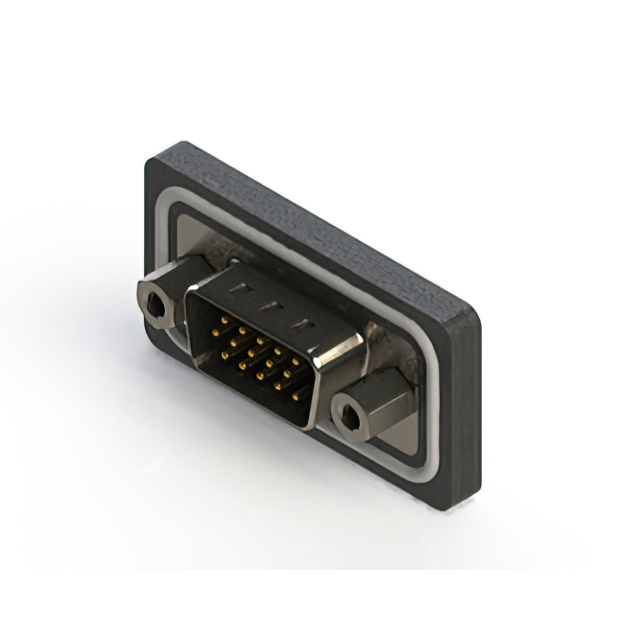

637W (WATERPROOF) SERIES VERTICA
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Material Flammability Rating | Number of Rows [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Connector Type | Contact Type | Ingress Protection | Termination | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Mounting Type | Current Rating (Amps) | Shell Material, Finish | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | 0.38 µm | 15 µin | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Solder | Grounding Indents Shielded | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Through Hole | 3 A | Nickel Plated Steel | 15 | |
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | 0.38 µm | 15 µin | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Free Hanging (In-Line) | 3 A | Nickel Plated Steel | 15 | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | 0.76 Ám | 30 Áin | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Solder | Grounding Indents Shielded | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Through Hole | 3 A | Nickel Plated Steel | 15 | |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Panel Mount | 3 A | Nickel Plated Steel | 15 | Flash | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Solder | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Panel Mount Through Hole | 3 A | Nickel Plated Steel | 15 | Flash | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Copper Alloy | Black | UL94 V-0 | 3 | Gold | 0.76 Ám | 30 Áin | D-Sub High Density | Plug Male Pins | Signal | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Free Hanging (In-Line) | 3 A | Nickel Plated Steel | 15 |
