325-010 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Pitch	Pitch	Mounting Type	Contact Type	Contact Finish	Gender	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Thickness	Card Thickness	Card Type	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Rows
EDAC Inc. 325-010-520-201	2	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Solder	0.25 Ám	10 Áin	Dual	3.18 mm	0.125 in	Non Specified - Dual Edge	5
EDAC Inc. 325-010-500-209	2	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Dual	3.18 mm	0.125 in	Non Specified - Dual Edge	5	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm

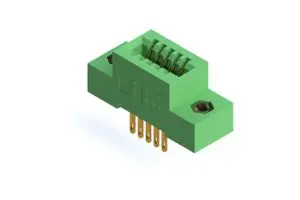

EDAC Inc. 325-010-500-208	2	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Dual	3.18 mm	0.125 in	Non Specified - Dual Edge	5	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-010-540-207	2	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Dual	3.18 mm	0.125 in	Non Specified - Dual Edge	5	Flush Mount M3 Threaded Insert Top Opening

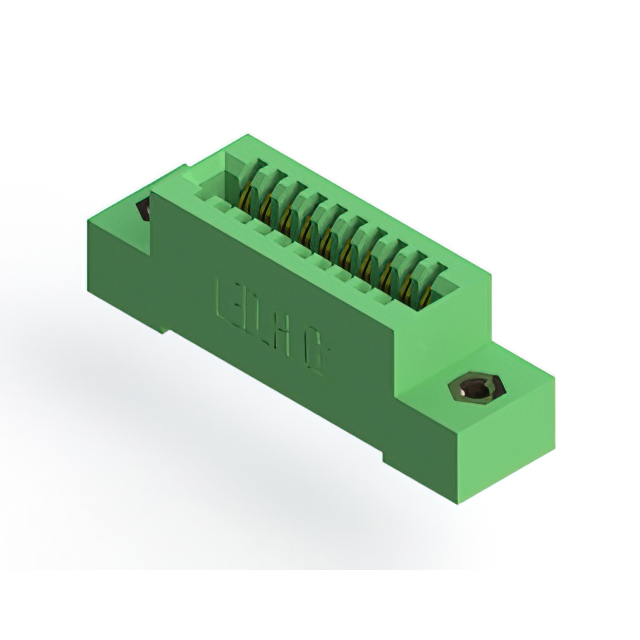

EDAC Inc. 325-010-520-108		Diallyl Phthalate (DAP)		-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Solder	0.25 Ám	10 Áin	Single	3.18 mm	0.125 in	Non Specified - Single Edge	10	4-40 Flush Mount Threaded Insert Top Opening			1	1

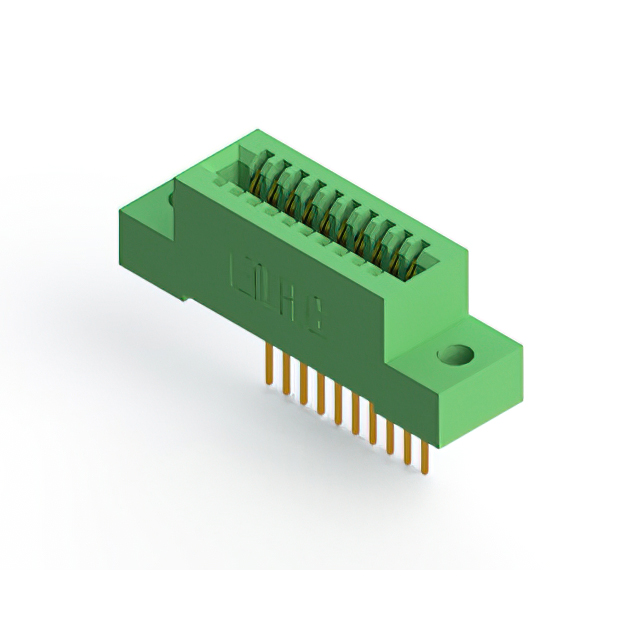

EDAC Inc. 325-010-540-109		Diallyl Phthalate (DAP)		-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Single	3.18 mm	0.125 in	Non Specified - Single Edge	10	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	1	1

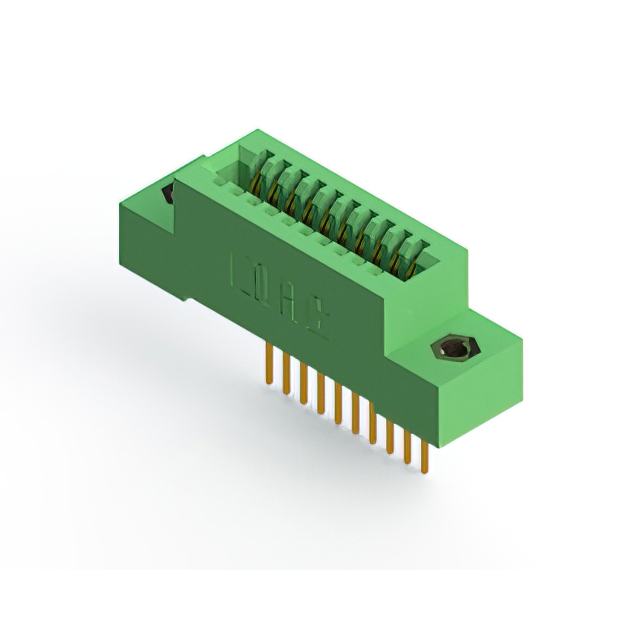

EDAC Inc. 325-010-540-107		Diallyl Phthalate (DAP)		-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Single	3.18 mm	0.125 in	Non Specified - Single Edge	10	Flush Mount M3 Threaded Insert Top Opening			1	1
EDAC Inc. 325-010-540-208	2	Diallyl Phthalate (DAP)	2	-65 ░C	125 °C	Green	10	0.1 "	2.54 mm	Through Hole	Cantilever	Gold	Female	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Dual	3.18 mm	0.125 in	Non Specified - Dual Edge	5	4-40 Flush Mount Threaded Insert Top Opening
