M2028TN Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Electrical Life	Mechanical Life	Approval Agency	Actuator Type	Termination Style	Circuit	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Features	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)

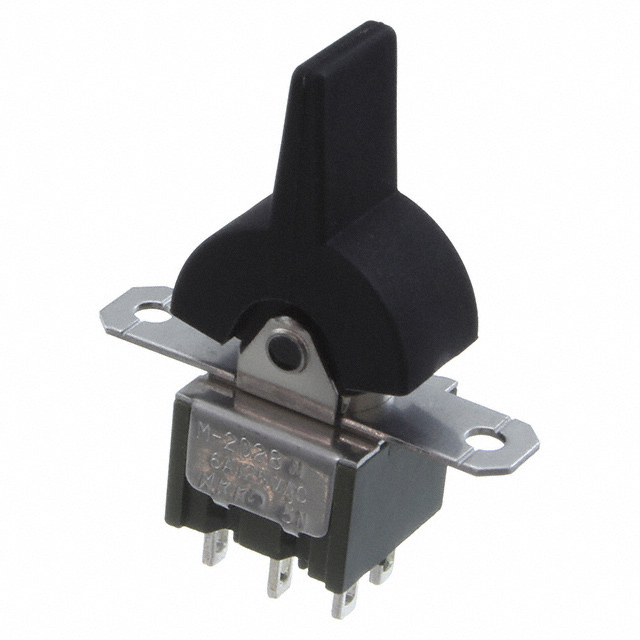

NKK Switches M2028TNW01-EA	25000 Steps	50000 Cycles	CSA UL	Paddle	Solder Lug	DPDT	Black	Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	No Marking	125 V	30 V	10.1 mm	17.8 mm	3 A 6 A

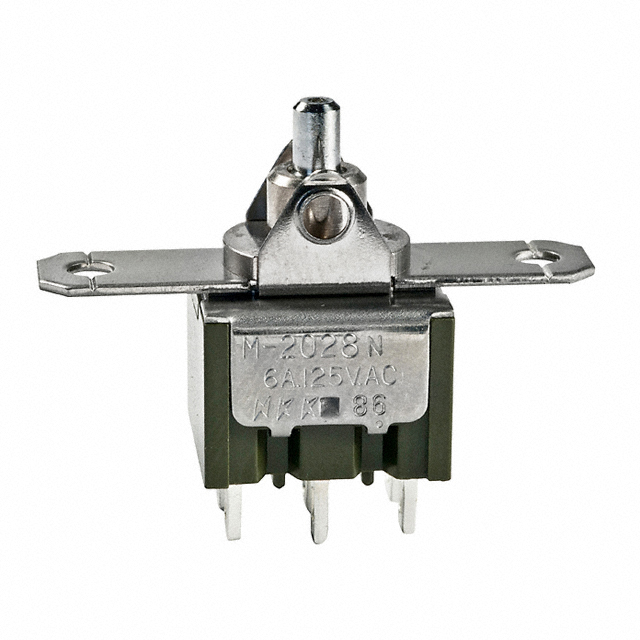

NKK Switches M2028TNW01	25000 Steps	50000 Cycles	CSA UL	Actuator Arm Cap Required	Solder Lug	DPDT		Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	Varies by Cap	125 V	30 V			3 A 6 A
NKK Switches M2028TNW01-GA	25000 Steps	50000 Cycles	CSA UL	Paddle	Solder Lug	DPDT	Black	Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	No Marking	125 V	30 V	12.4 mm	0.5 in	3 A 6 A
NKK Switches M2028TNW03-GA	25000 Steps	50000 Cycles	CSA UL	Paddle	PC Pin	DPDT	Black	Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	No Marking	125 V	30 V			3 A 6 A
NKK Switches M2028TNW03	25000 Steps	50000 Cycles	CSA UL	Actuator Arm Cap Required	PC Pin	DPDT		Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	Varies by Cap	125 V	30 V	12.4 mm	0.5 in	3 A 6 A
NKK Switches M2028TNW01-DA	25000 Steps	50000 Cycles	CSA UL	Concave	Solder Lug	DPDT	Black	Flange Panel Mount	85 °C	-30 ░C	Mom-Off-Mom	Epoxy Sealed Terminals	No Marking	125 V	30 V	10.1 mm	17.8 mm	3 A 6 A
