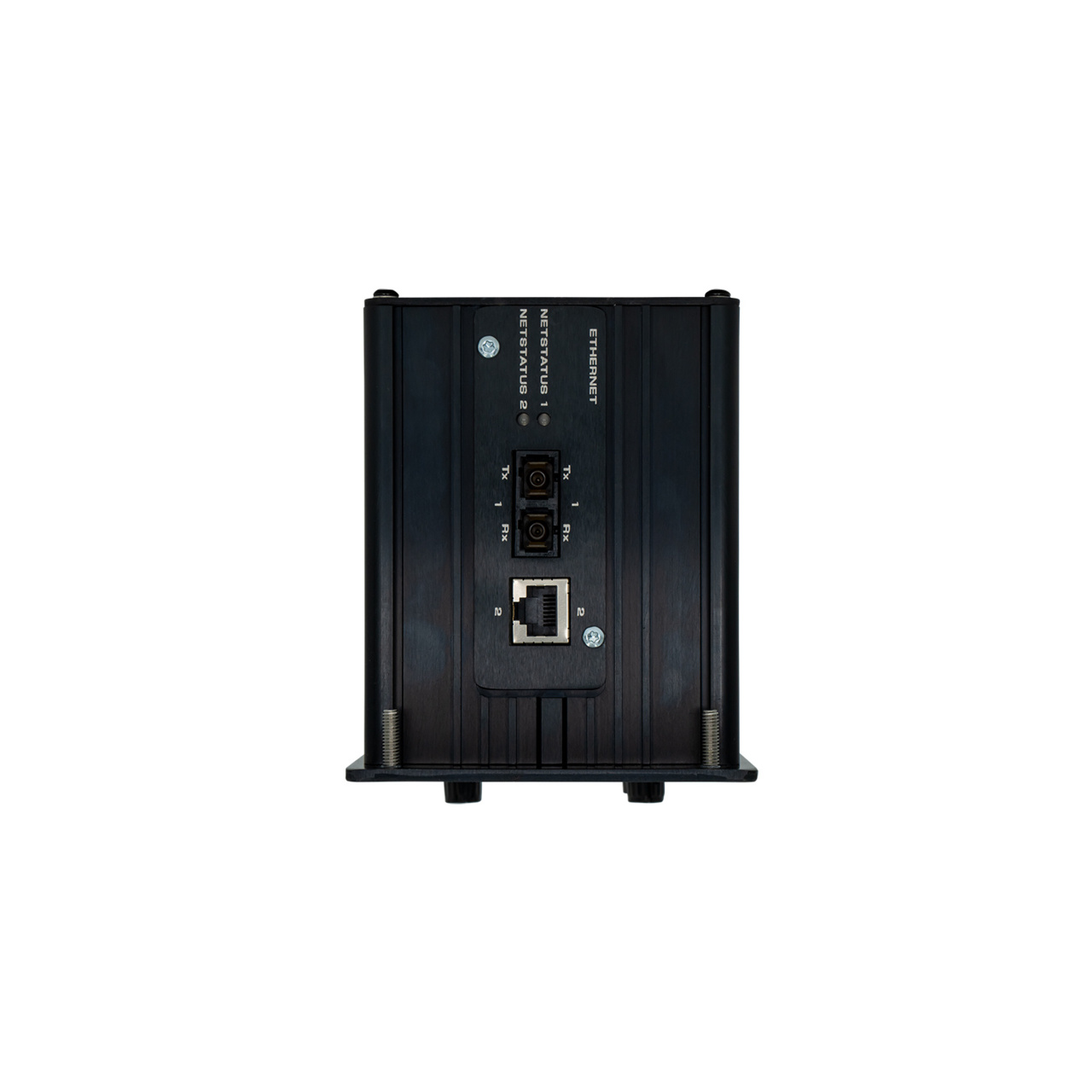

SE-330-07-00 Series

NGR Mon.,Univ.,SC Fiber & RJ45,61850

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

NGR Mon.,Univ.,SC Fiber & RJ45,61850

Part	Termination Style	Trip Range [Min]	Trip Range [Max]	Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Delay Time [Max]	Delay Time [Min]	Voltage - Supply
Littelfuse/Commercial Vehicle Products SE-330-07-00	Screw Terminal	20 VAC	10000 VAC	Ground Fault	Harmonic Filtering Manual Reset	-40 °C	60 °C	10 s	0.1 Sec	120 VAC 240 VDC

Catalog

NGR Mon.,Univ.,SC Fiber & RJ45,61850

Description

SE-330-07-00 is an advanced ground-fault and neutral-grounding resistor monitor with a supply voltage ac of 65–265 and a supply voltage dc of 85–275. Network communications is offered via USB; IEC61850 (RJ45 and SC Fiber).
