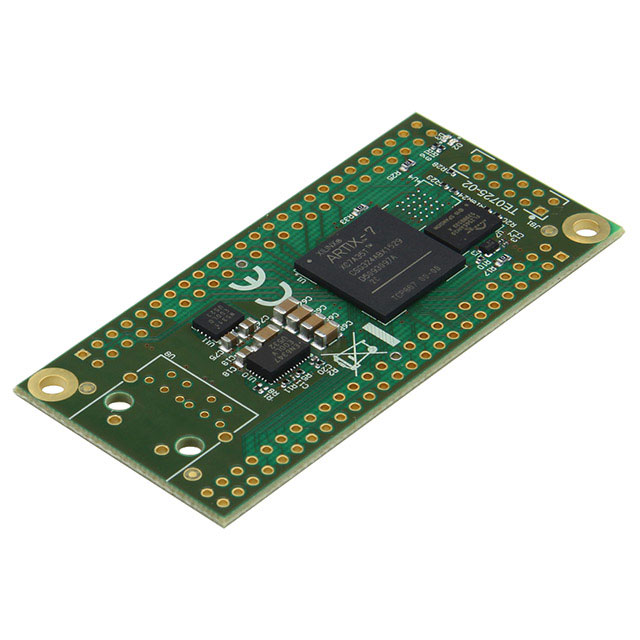

TE0725 Series

Catalog

IC MOD ARTIX-7 A100T 25MHZ 64MB

Part	Connector Type	Connector Pin Count	Module/Board Type	Core Processor	Operating Temperature (Max)	Flash Size	Speed	Size / Dimension Width	Size / Dimension Length
Trenz Electronic TE0725LP-01-72C-1	50 Pin Pin	50	FPGA Core	Artix-7 A100T	70 °C	64 MB	25 MHz	1.38 in	2.87 in
Trenz Electronic TE0725-03-100-2C	50 Pin Pin	50	FPGA Core	Artix-7 A100T	70 °C	32 MB	100 MHz	1.38 in	2.87 in

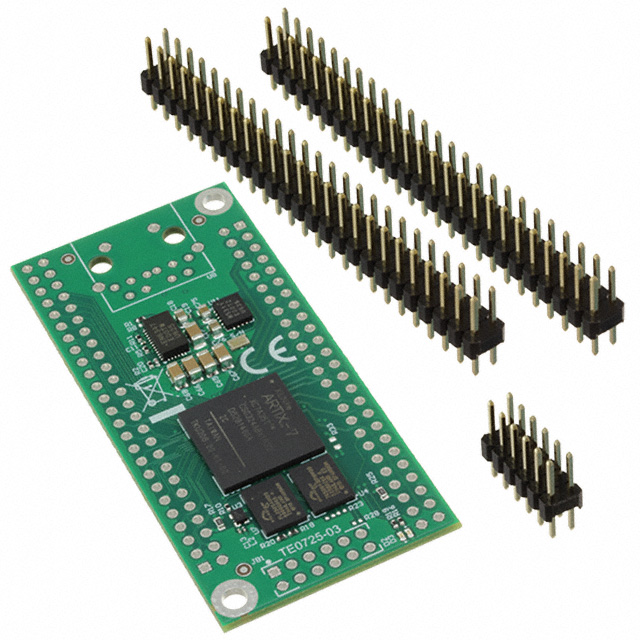

Trenz Electronic TE0725-03-35-2C	50 Pin Pin	50	FPGA Core	Artix-7 A35T	70 °C	32 MB	100 MHz	1.38 in	2.87 in
Trenz Electronic TE0725LP-01-72C-1U	50 Pin Pin	50	FPGA Core	Artix-7 A100T	70 °C	64 MB	25 MHz	1.38 in	2.87 in
