1618013 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

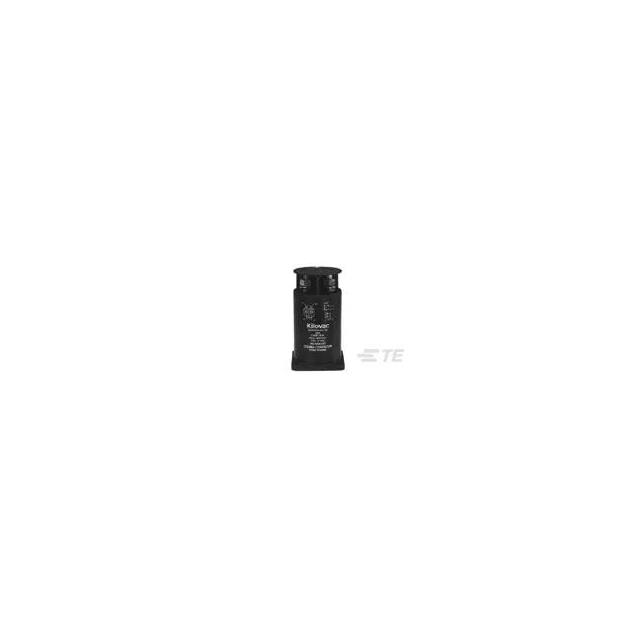

RELAY GEN PURPOSE SPST 500A 24V
| Part | Switching Voltage | Relay Type | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Termination Style | Contact Rating (Current) | Coil Voltage | Coil Type | Must Release Voltage | Operate Time | Seal Rating | Mounting Type | Coil Resistance | Contact Form | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 250 VDC | General Purpose | 16.5 VDC | 85 °C | -40 °C | 461.5 mA | Stud | 500 A | 24 VDC | Non Latching | 1.3 VDC | 40 ms | Sealed - Hermetically | Chassis Mount | 52 Ohms | SPST-NO (DM) (1 Form X) | 10 ms |
