R12146 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

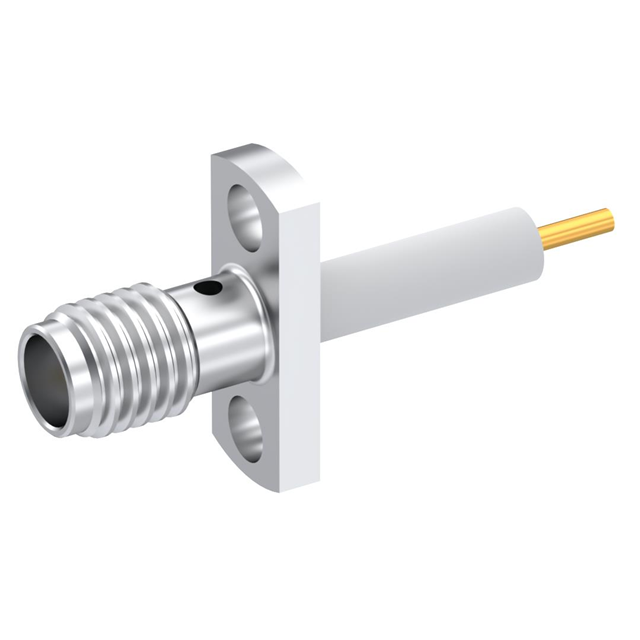

SSMA / 2 HOLE FLANGE RECEPTACLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mating Cycles | Voltage Rating | Center Contact Plating | Mounting Feature | Contact Termination | Fastening Type | Connector Type | Connector Style | Shield Termination | Frequency - Max [Max] | Housing Color | Center Contact Material | Number of Ports | Mounting Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 | 250 V | Gold | Flange | Solder | Threaded | Female Socket Jack | SSMA | Solder | 26.5 GHz | Silver | Bronze | 1 | Panel Mount Through Hole | 50 Ohms |
