EZM36 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

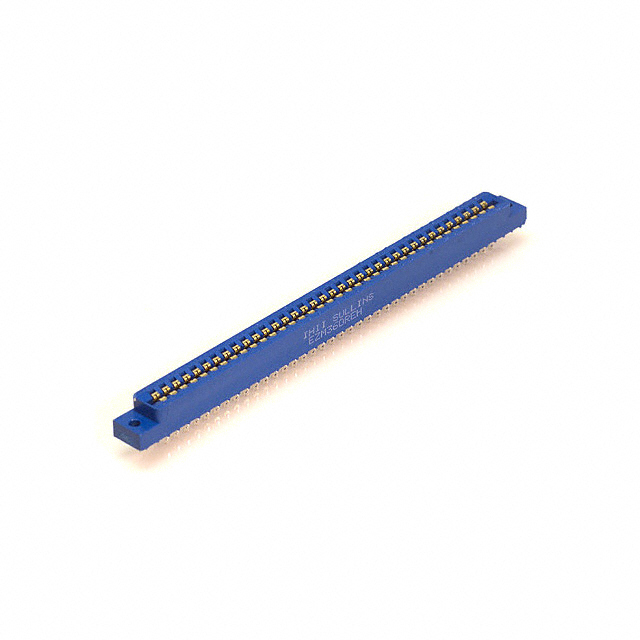

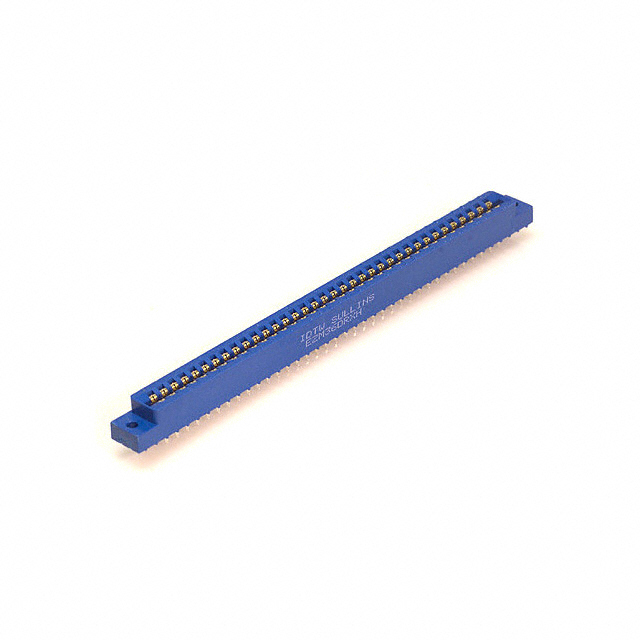

CONN EDGE DUAL FMALE 72POS 0.156
| Part | Material - Insulation | Card Thickness | Card Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Read Out | Gender | Card Type | Number of Rows | Color | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.062 in | 1.57 mm | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Dual | Female | Non Specified - Dual Edge | 2 | Blue | 36 | Gold | 10 Áin | 0.25 Ám | Phosphor Bronze | 72 | Through Hole | Full Bellows | 125 °C | -65 ░C | Solder | 0.156 in | 3.96 mm |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.062 in | 1.57 mm | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Dual | Female | Non Specified - Dual Edge | 2 | Blue | 36 | Gold | 10 Áin | 0.25 Ám | Phosphor Bronze | 72 | Full Bellows | 125 °C | -65 ░C | Solder Eyelet(s) | 0.156 in | 3.96 mm |
