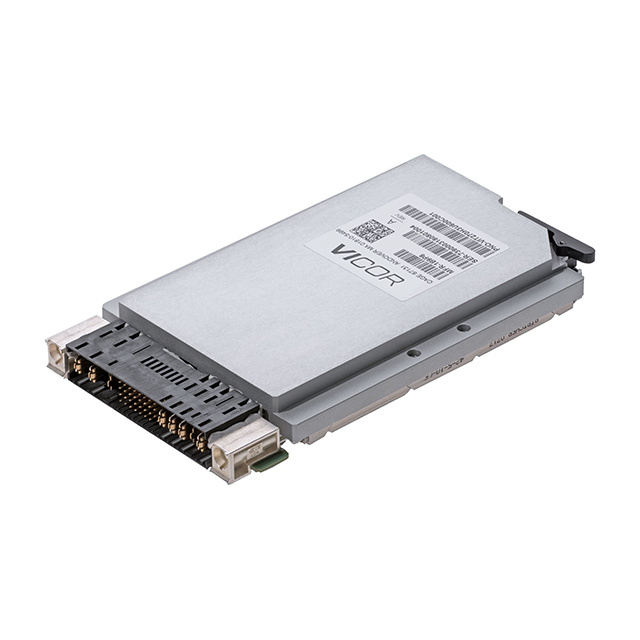

VIT028 Series

Catalog

DC/DC CONVERTER 12V 3.3V 5V

Part	Applications	Current - Output (Max)	Voltage - Output 3	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Voltage - Isolation	Type	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Output 2	Efficiency	Power (Watts)
Vicor Corporation VIT028H3U600D000	ITE (Commercial)	20 A 30 A 40 A	5 V	24.13 mm	6.63 in	168.5 mm	24.1 mm	3.94 in	100 mm	12 V	500 V	Conformal Coated Enclosed	45 V	Chassis Mount	3	85 °C	-40 C	18 V	3.3 V	87.5 %
Vicor Corporation VIT028H6U1000C000	ITE (Commercial)	30 A 32 A 70 A	5 V	24.13 mm	9.19 in	233.4 mm	24.2 mm	6.63 in	168.5 mm	12 V	500 V	Conformal Coated Enclosed	42 V	Chassis Mount	3	85 °C	-40 C	18 V	3.3 V	89 %	1099 W
Vicor Corporation VIT028H3U600C000	ITE (Commercial)	20 A 30 A 40 A	5 V	24.13 mm	6.63 in	168.5 mm	24.1 mm	3.94 in	100 mm	12 V	500 V	Conformal Coated Enclosed	45 V	Chassis Mount	3	85 °C	-40 C	18 V	3.3 V	87.5 %
