TPS1HTC30-Q1 Series
Automotive, 60-V, 6-A, 30-mΩ, one-channel smart high-side switch with adjustable current limit
Manufacturer: Texas Instruments
Catalog
Automotive, 60-V, 6-A, 30-mΩ, one-channel smart high-side switch with adjustable current limit
Key Features
• Single-channel smart high-side power switch for 24-V automotive systems with full diagnosticsWide operating voltage range: 6 V to 60 VOVP protection: 66 VLow R ON: 30-mΩ typical, 55-mΩ maximumLow standby current: < 0.5 µALow quiescent current (Iq): < 2 mAImprove system level reliability throughadjustable current limitingCurrent limit: 2 A –16 AAccurate current sensing: ±4% at 1 AProtectionOverload and short-circuit protectionIntegrated inductive discharge clampUndervoltage lockout (UVLO) protectionLoss of GND, loss of supply protectionReverse battery protection with external componentsDiagnosticsOn and off state output open-load and short-to-battery detectionOverload and short to ground detectionAbsolute and relative thermal shutdown detectionFunctional Safety-CapableDocumentation available to aid functional safety system designOperating junction temperature: –40 to 125°CInput control: 1.8-V, 3.3-V and 5-V logic compatibleIntegrated fault sense voltage scaling for ADC protectionQualificationsAEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C to +125°C, T A14-pin thermally-enhanced TSSOP packageSingle-channel smart high-side power switch for 24-V automotive systems with full diagnosticsWide operating voltage range: 6 V to 60 VOVP protection: 66 VLow R ON: 30-mΩ typical, 55-mΩ maximumLow standby current: < 0.5 µALow quiescent current (Iq): < 2 mAImprove system level reliability throughadjustable current limitingCurrent limit: 2 A –16 AAccurate current sensing: ±4% at 1 AProtectionOverload and short-circuit protectionIntegrated inductive discharge clampUndervoltage lockout (UVLO) protectionLoss of GND, loss of supply protectionReverse battery protection with external componentsDiagnosticsOn and off state output open-load and short-to-battery detectionOverload and short to ground detectionAbsolute and relative thermal shutdown detectionFunctional Safety-CapableDocumentation available to aid functional safety system designOperating junction temperature: –40 to 125°CInput control: 1.8-V, 3.3-V and 5-V logic compatibleIntegrated fault sense voltage scaling for ADC protectionQualificationsAEC-Q100 qualified for automotive applicationsTemperature grade 1: –40°C to +125°C, T A14-pin thermally-enhanced TSSOP package
Description
AI
TPS1HTC30-Q1 is a single-channel, smart high-side switch, with integrated NMOS power FET and charge pump, designed to meet the requirements of 24-V automotive battery systems. The low R ON(30 mΩ) minimizes device power dissipation driving a wide range of output load current up to 6-A DC, and the 60-V DC operating range improves system robustness.
The device integrates protection features such as thermal shutdown, output clamp, and current limit. These features improve system robustness during fault events such as short circuit. TPS1HTC30-Q1 implements an adjustable current limiting circuit that improves the reliability of the system by reducing inrush current when driving large capacitive loads and minimizing overload current. The device also provides an accurate load current sense that allows for improved load diagnostics such as overload and open-load detection enabling better predictive maintenance.

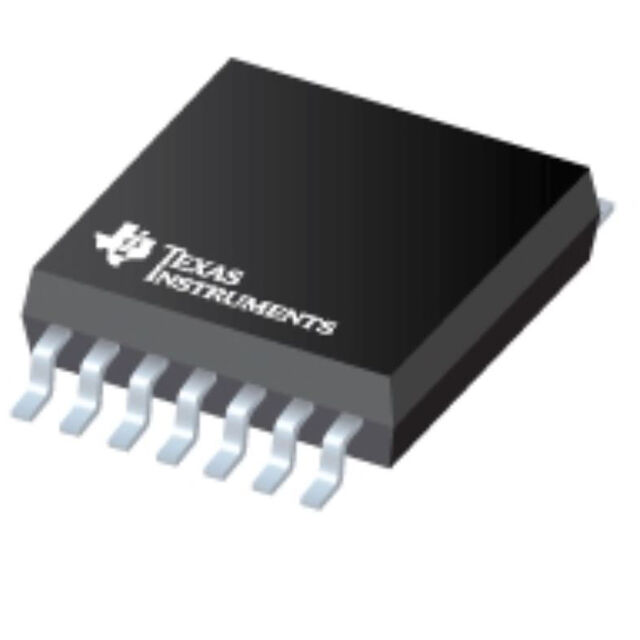

TPS1HTC30-Q1 is available in a small 14-pin, 4.40-mm × 5.0-mm HTSSOP leaded package with 0.65-mm pin pitch minimizing the PCB footprint.
TPS1HTC30-Q1 is a single-channel, smart high-side switch, with integrated NMOS power FET and charge pump, designed to meet the requirements of 24-V automotive battery systems. The low R ON(30 mΩ) minimizes device power dissipation driving a wide range of output load current up to 6-A DC, and the 60-V DC operating range improves system robustness.
The device integrates protection features such as thermal shutdown, output clamp, and current limit. These features improve system robustness during fault events such as short circuit. TPS1HTC30-Q1 implements an adjustable current limiting circuit that improves the reliability of the system by reducing inrush current when driving large capacitive loads and minimizing overload current. The device also provides an accurate load current sense that allows for improved load diagnostics such as overload and open-load detection enabling better predictive maintenance.
TPS1HTC30-Q1 is available in a small 14-pin, 4.40-mm × 5.0-mm HTSSOP leaded package with 0.65-mm pin pitch minimizing the PCB footprint.
