83712 Series
Manufacturer: Belden Inc.
Beta
⌘K

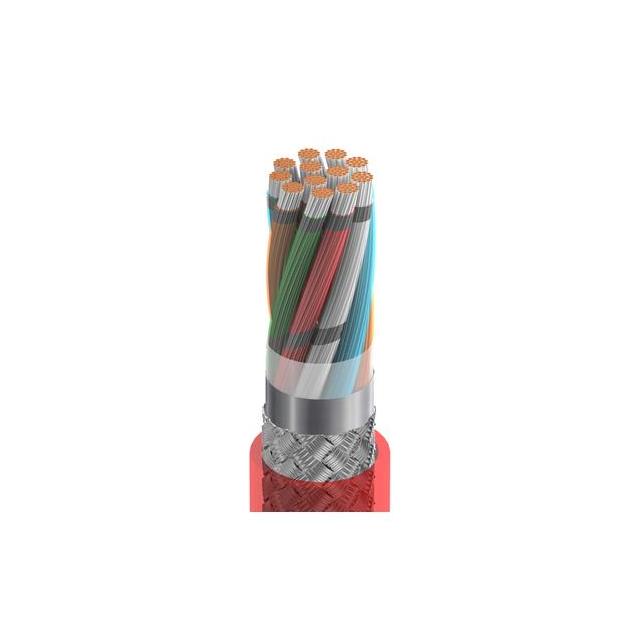

CABLE 12CON 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Insulation | Shield Type | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Cable Type | Ratings | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Audio Control Instrumentation | 8.74 mm | 0.344 " | 12 | Fluorinated Ethylene-Propylene (FEP) | Braid Foil | 300 VDC | 16 AWG | 19 | 29 | Copper Tinned | Multi-Conductor | UL Style CMP | Fluorinated Ethylene-Propylene (FEP) Plenum | -70 °C | 200 °C | 0.014 in | 0.356 mm | 304.8 m | 1000 ft | Red |
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Audio Control Instrumentation | 8.74 mm | 0.344 " | 12 | Fluorinated Ethylene-Propylene (FEP) | Braid Foil | 300 VDC | 16 AWG | 19 | 29 | Copper Tinned | Multi-Conductor | UL Style CMP | Fluorinated Ethylene-Propylene (FEP) Plenum | -70 °C | 200 °C | 0.014 in | 0.356 mm | 152.4 m | 500 ft | Red |
