MAX16807 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC LED DRV CTRL PWM 55MA 28TSSOP
| Part | Voltage - Supply (Max) [Max] | Internal Switch(s) | Frequency [Max] | Frequency [Min] | Package / Case | Package / Case [custom] | Package / Case [x] | Applications | Voltage - Output | Topology | Voltage - Supply (Min) [Min] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Dimming | Supplier Device Package | Mounting Type | Number of Outputs | Current - Output / Channel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

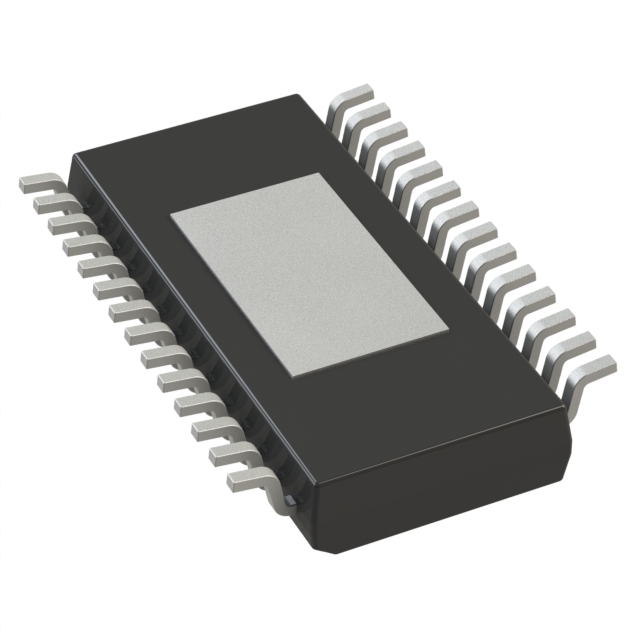

 Analog Devices Inc./Maxim Integrated | 26.5 V | 1 MHz | 20 kHz | 28-TSSOP Exposed Pad | 4.4 mm | 0.173 in | Backlight Lighting | 36 V | SEPIC Step-Down (Buck) Step-Up (Boost) | 8 V | DC DC Controller | -40 °C | 125 °C | PWM | 28-TSSOP-EP | Surface Mount | 8 | 55 mA | |
 Analog Devices Inc./Maxim Integrated | 26.5 V | 1 MHz | 20 kHz | 28-TSSOP Exposed Pad | 4.4 mm | 0.173 in | Backlight Lighting | 36 V | SEPIC Step-Down (Buck) Step-Up (Boost) | 8 V | DC DC Controller | -40 °C | 125 °C | PWM | 28-TSSOP-EP | Surface Mount | 8 | 55 mA |
