FI4D012 Series
Manufacturer: Belden Inc.
Beta
⌘K

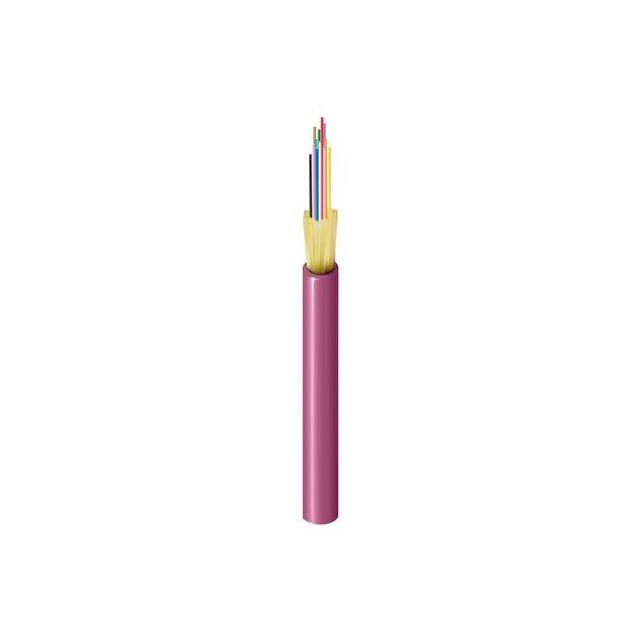

CBL FIBER OPTIC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Cladding Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Type | Ratings | Jacket (Insulation) Material | Core Diameter [diameter] | Features | Tensile Strength | Style | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | 0 °C | 125 µm | 0.23 in | 5.84 mm | Multimode | OFNP | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Rip Cord | 20.4 kg | Multiple Fibers | Violet |
 Belden Inc. | 70 °C | 0 °C | 125 µm | 0.48 in | 12.19 mm | Multimode | OFCP | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Armored | 20.4 kg | Multiple Fibers | Violet |
 Belden Inc. | 70 °C | 0 °C | 125 µm | 0.23 in | 5.84 mm | Multimode | OFNP | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Rip Cord | 20.4 kg | Multiple Fibers | Aqua |
 Belden Inc. | |||||||||||||
 Belden Inc. | 70 °C | 0 °C | 125 µm | 0.48 in | 12.19 mm | Multimode | OFCP | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Armored | 20.4 kg | Multiple Fibers | Aqua |
Belden Inc. | 70 °C | -20 ░C | 125 µm | 0.26 in | 6.6 mm | Multimode | OFNR | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Rip Cord | 20.4 kg | Multiple Fibers | Aqua |
Belden Inc. | 70 °C | -20 ░C | 125 µm | 0.53 in | 13.46 mm | Multimode | OFCR | Poly-Vinyl Chloride (PVC) | 50 µm | 12 Fibers Armored | 20.4 kg | Multiple Fibers | Violet |
