EDSP10 Series

Catalog

SWITCH: DIP-SWITCH; POLES NUMBER: 10; OFF-ON; 0.025A/24VDC; POS: 2

Part	Mechanical Life	Electrical Life	Length	Length	Body Material	Circuit	Pitch	Pitch	Contact Finish	Voltage Rating	Actuator Level	Number of Positions	Termination Style	Height Above Board	Height Above Board	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type

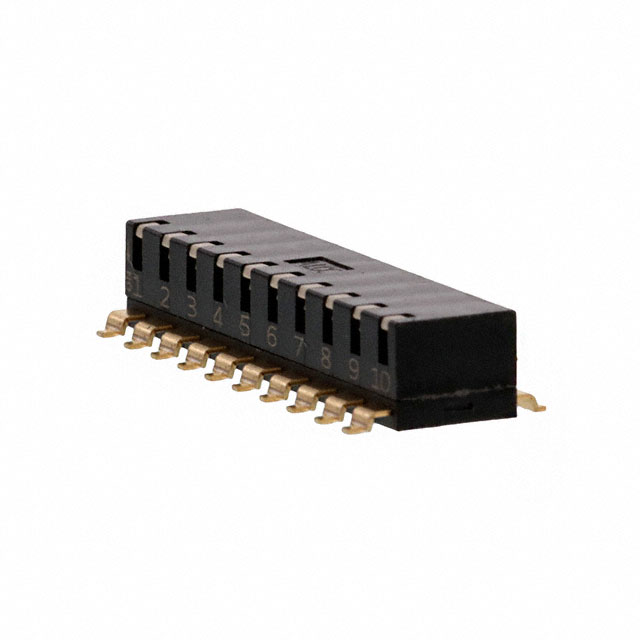

TE Connectivity AMP Connectors EDSP10SGRNNTU04	2000 Cycles	2000 Steps	0.996 in	25.3 mm	Polyamide (PA) Nylon	SPST	2.54 mm	0.1 "	Gold	24 VDC	Flush Recessed	10	Gull Wing	5 mm	0.197 in	25 mA	Copper Alloy	85 °C	-20 ░C	Piano	Right Angle Surface Mount

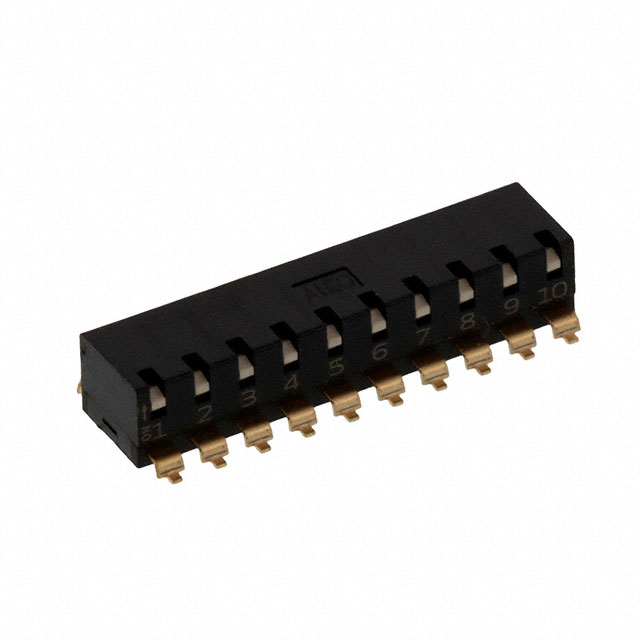

TE Connectivity AMP Connectors EDSP10SGRFNTU04	2000 Cycles	2000 Steps	0.996 in	25.3 mm	Polyamide (PA) Nylon	SPST	2.54 mm	0.1 "	Gold	24 VDC	Flush Recessed	10	Gull Wing	5 mm	0.197 in	25 mA	Copper Alloy	85 °C	-20 ░C	Piano	Right Angle Surface Mount

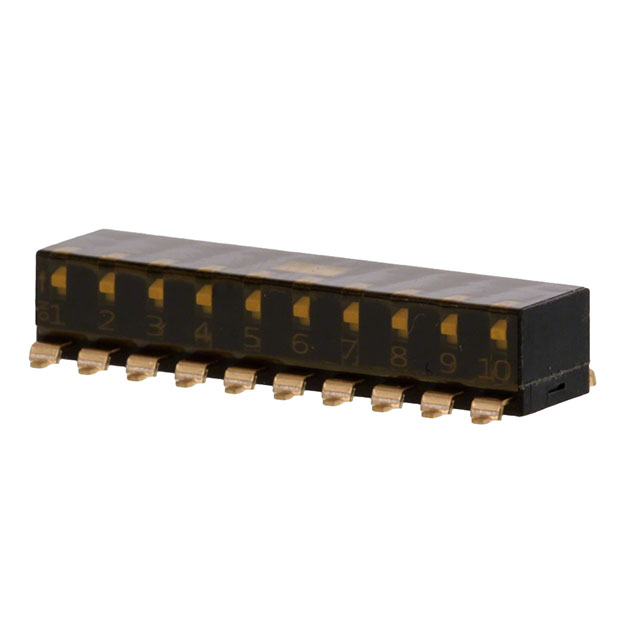

TE Connectivity AMP Connectors EDSP10SGRFSTU04	2000 Cycles	2000 Steps	0.996 in	25.3 mm	Polyamide (PA) Nylon	SPST	2.54 mm	0.1 "	Gold	24 VDC	Flush Recessed	10	Gull Wing	5 mm	0.197 in	25 mA	Copper Alloy	85 °C	-20 ░C	Piano	Right Angle Surface Mount
TE Connectivity AMP Connectors EDSP10SGLFNTU04	2000 Cycles	2000 Steps	0.996 in	25.3 mm	Polyamide (PA) Nylon	SPST	2.54 mm	0.1 "	Gold	24 VDC	Raised	10	Gull Wing	5 mm	0.197 in	25 mA	Copper Alloy	85 °C	-20 ░C	Piano	Right Angle Surface Mount

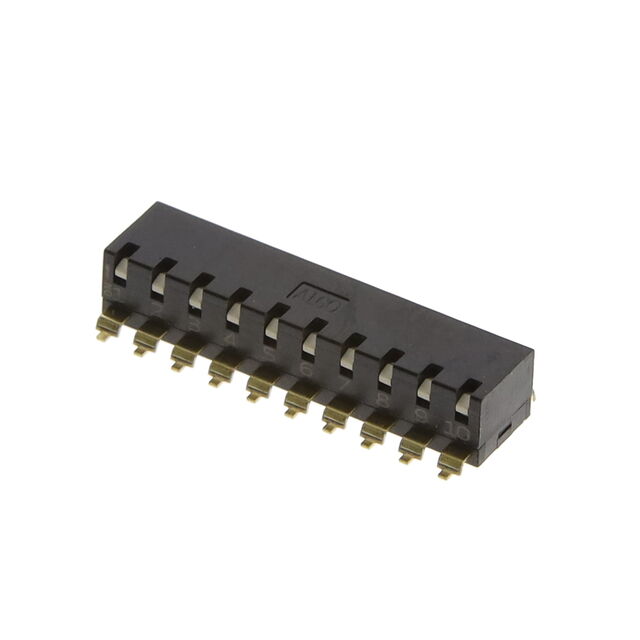

TE Connectivity AMP Connectors EDSP10SGRFSTR04	2000 Cycles	2000 Steps	0.996 in	25.3 mm	Polyamide (PA) Nylon	SPST	2.54 mm	0.1 "	Gold	24 VDC	Flush Recessed	10	Gull Wing	5 mm	0.197 in	25 mA	Copper Alloy	85 °C	-20 ░C	Piano	Right Angle Surface Mount
