2041 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, SINGLE ROW, 20 PIN,

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Type	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded
Oupiin 2041-1X20G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C	1	2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	20	Gold	Solder	0.197 "	5 mm
Oupiin 2041-1X40G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C	1	2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	40	Gold	Solder	0.197 "	5 mm
Oupiin 2041-2X10G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C		2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	20	Gold	Solder	0.197 "	5 mm	0.1 in	2.54 mm	2
Oupiin 2041-1X03G00SB	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C	1	2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0		Gold	Solder	0.197 "	5 mm

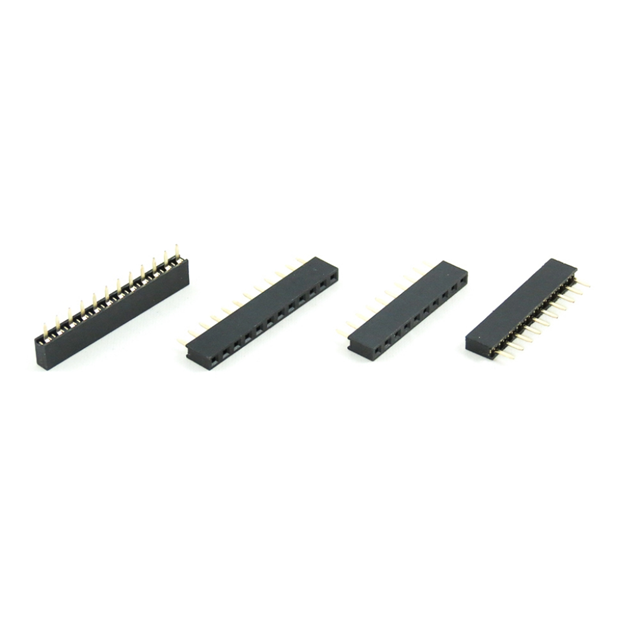

Oupiin 2041-1X10G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C	1	2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	10	Gold	Solder	0.197 "	5 mm
Oupiin 2041-2X11G10SA-A003	Square	Copper Alloy		Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm		Gold		Socket	-55 C	105 ░C		2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	22	Gold	Solder	0.197 "	5 mm	0.1 in	2.54 mm	2	10 Áin	0.25 çm	0.25 µm	10 µin	20
Oupiin 2041-2X13G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C		2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	26	Gold	Solder	0.197 "	5 mm	0.1 in	2.54 mm	2
Oupiin 2041-1X16G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C	1	2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	16	Gold	Solder	0.197 "	5 mm
Oupiin 2041-2X04G00SB	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C		2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	8	Gold	Solder	0.197 "	5 mm	0.1 in	2.54 mm	2
Oupiin 2041-2X08G00SA	Square	Copper Alloy	Flash	Glass Filled Polyester Thermoplastic	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Gold	Flash	Socket	-55 C	105 ░C		2 A	Push-Pull	Through Hole	Female Socket	UL94 V-0	16	Gold	Solder	0.197 "	5 mm	0.1 in	2.54 mm	2
