307-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Gender	Number of Positions/Bay/Row	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Read Out	Termination	Pitch	Pitch	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 307-066-420-203	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	Tin	-40 C	105 ░C	Through Hole	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in
EDAC Inc. 307-066-555-208	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Gold	-40 C	105 ░C	Board Edge Straddle Mount	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder Eyelet(s)	3.96 mm	0.156 in	Card Extender	0.25 Ám	10 Áin

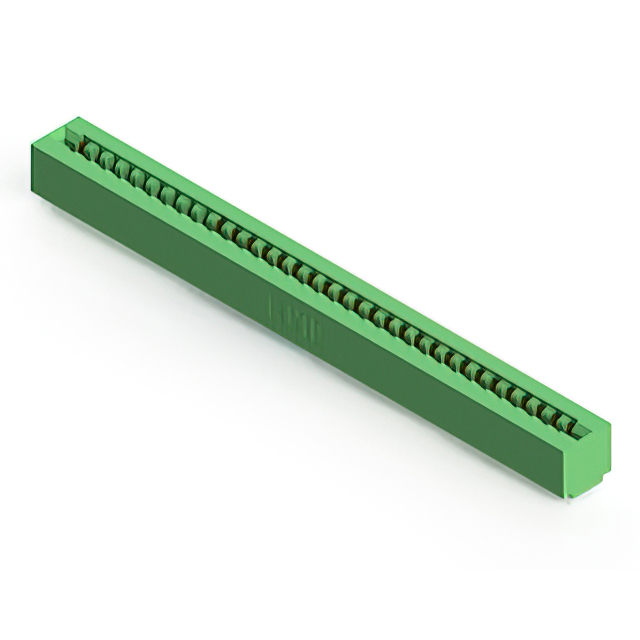

EDAC Inc. 307-066-556-201	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge				Copper Alloy	Gold	-40 C	105 ░C	Board Edge Straddle Mount	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in	Card Extender	0.25 Ám	10 Áin
EDAC Inc. 307-066-522-203	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	Gold	-40 C	105 ░C	Through Hole	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in		0.25 Ám	10 Áin

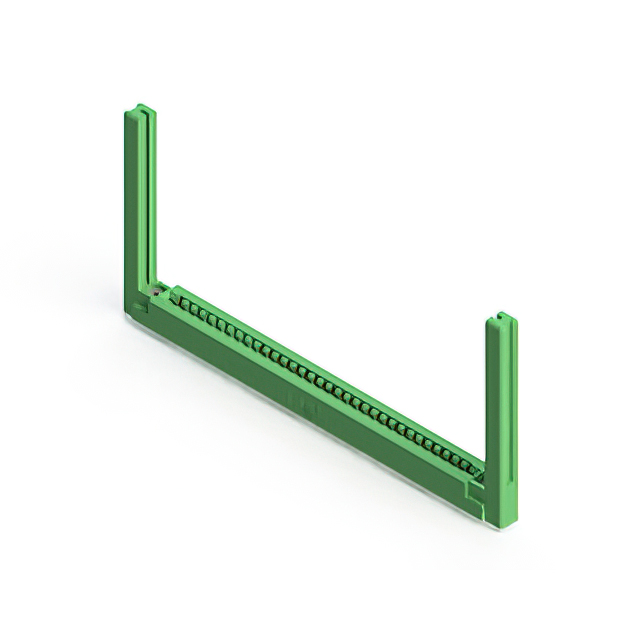

EDAC Inc. 307-066-556-258	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Gold	-40 C	105 ░C	Board Edge Straddle Mount	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in	Card Extender Card Guides	0.25 Ám	10 Áin
EDAC Inc. 307-066-555-202	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Copper Alloy	Gold	-40 C	105 ░C	Board Edge Straddle Mount	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder Eyelet(s)	3.96 mm	0.156 in	Card Extender	0.25 Ám	10 Áin

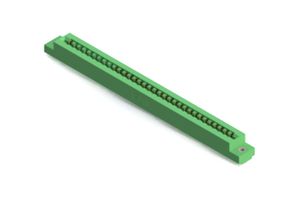

EDAC Inc. 307-066-522-208	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Gold	-40 C	105 ░C	Through Hole	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in		0.25 Ám	10 Áin

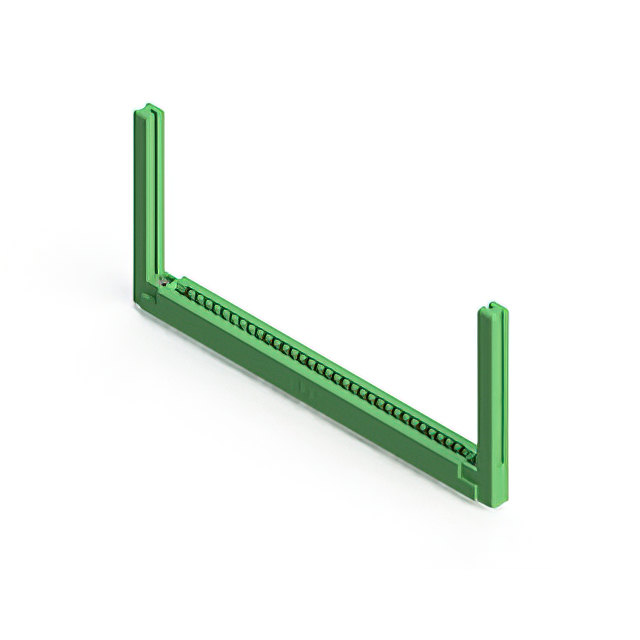

EDAC Inc. 307-066-542-258	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Gold	-40 C	105 ░C	Through Hole	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Wire Wrap	3.96 mm	0.156 in	Card Guides	0.25 Ám	10 Áin

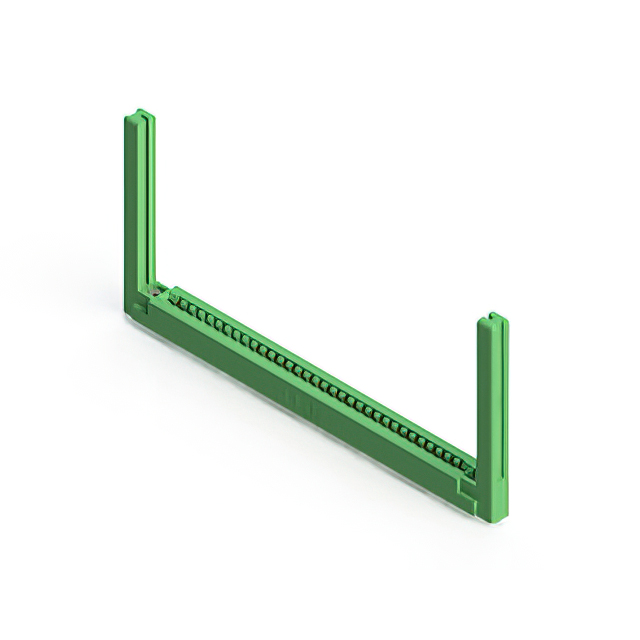

EDAC Inc. 307-066-558-258	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Gold	-40 C	105 ░C	Right Angle Through Hole	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder Wire Wrap	3.96 mm	0.156 in	Card Guides	0.25 Ám	10 Áin

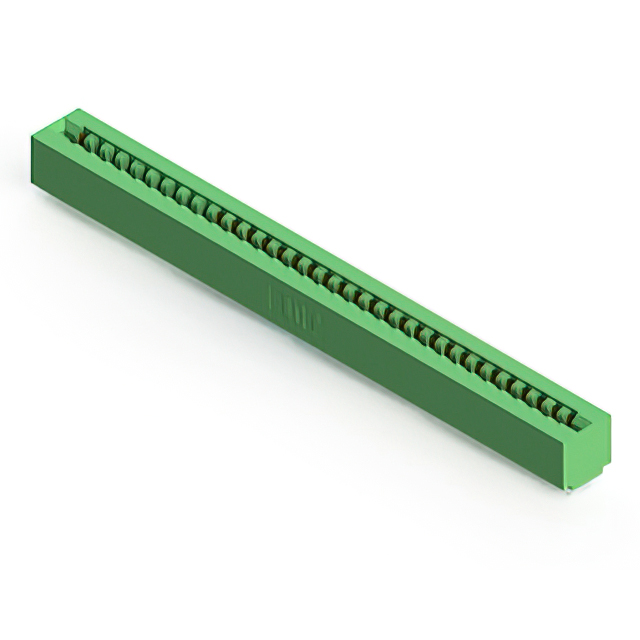

EDAC Inc. 307-066-560-201	Polyester Thermoplastic	2	Semi Bellows	Female	33	Non Specified - Dual Edge				Copper Alloy	Gold	-40 C	105 ░C	Board Edge Straddle Mount	Green	2	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Dual	Solder	3.96 mm	0.156 in	Card Extender	0.25 Ám	10 Áin
