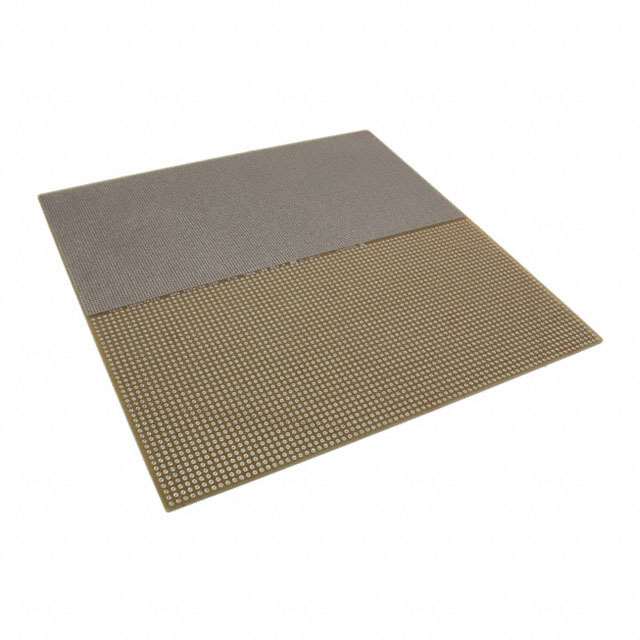

7050-100 Series
Manufacturer: TWIN INDUSTRIES
Beta
⌘K
PCBS & BREADBOARDS 4.0"X8.0" OF PLATED HOLES ON A .05" GRID AND 4.0"X8.0" OF PLATED HOLES ON A .10" GRID. LEAD FREE BOARD, HI-TEMP LAMINATE, GOLD PLATING. BOARD SIZE: 8"X8"
| Part | Pitch | Plating | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Circuit Pattern | Board Thickness | Board Thickness | Board Thickness | Proto Board Type | Hole Diameter | Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TWIN INDUSTRIES | 1.27 mm 2.54 mm | Plated Through Hole (PTH) | 203.2 mm | 8 in | 8 " | 203.2 mm | Pad Per Hole (Round) | 1.57 mm | 0.062 " | 0.0625 in | Breadboard General Purpose | 0.026 in 0.035 in | 0.66 mm 0.89 mm |
