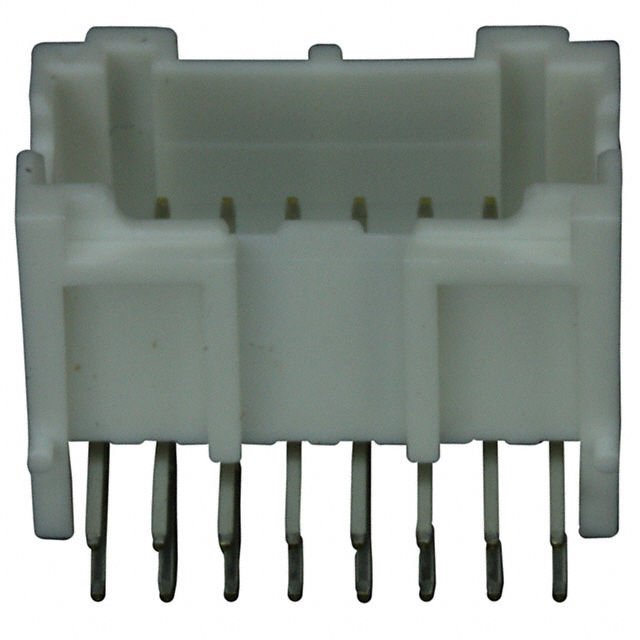

S16B-PAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 16POS 2MM
| Part | Insulation Material | Contact Shape | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Features | Style | Voltage Rating | Contact Material | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Termination | Shrouding | Insulation Height | Insulation Height | Contact Type | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Insulation Color | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Square | UL94 V-0 | 85 °C | -25 °C | Header | All | Tin | 16 | Board Guide | Board to Cable/Wire | 250 V | Copper Alloy | 2 | 0.079 " | 2 mm | Solder | Shrouded - 4 Wall | 0.413 in | 10.49 mm | Male Pin | 0.118 in | 3 mm | 2 mm | 0.079 in | Locking Ramp | Natural | 3 A | Right Angle Through Hole |
