HLW22R Series

Catalog

CONN FFC FPC TOP 22POS 1MM R/A

Part	Housing Color	Mating Cycles	Actuator Color	Connector/Contact Type	Cable End Type	Pitch	Pitch	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Flat Flex Type	FFC, FCB Thickness	Mounting Type	Contact Material	Contact Finish	Housing Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Voltage Rating

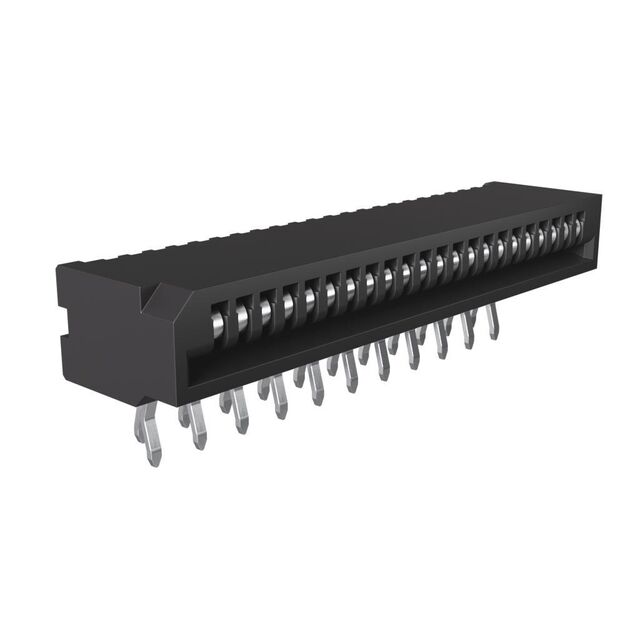

Amphenol ICC (FCI) HLW22R-2C7LF	Black	30	Black	Contacts Top	Tapered	1 mm	0.039 in	Kinked Pin	-55 C	85 °C	UL94 V-0	FFC FPC	0.33 mm	Right Angle Through Hole	Phosphor Bronze	Tin	Polybutylene Terephthalate (PBT) Glass Filled	0.154 in	3.9 mm	22	100 V
