65003CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

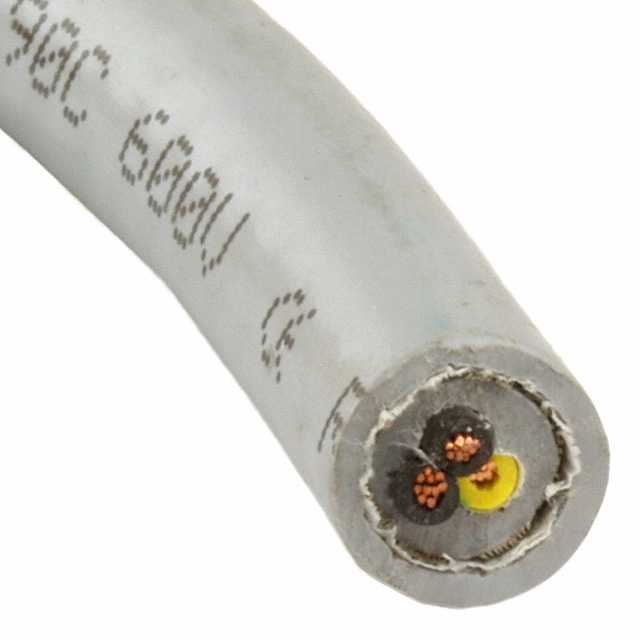

CABLE 3CON 20AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Insulation | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Shield Type | Jacket (Insulation) Material | Features | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3 | 8.61 mm | 0.339 in | 100 ft | 30.5 m | Multi-Conductor | 600 V | 0.035 in | 0.889 mm | Copper Bare | 20 AWG | 10 | 30 AWG | Slate | Braid | Poly-Vinyl Chloride (PVC) | Biological Compatibility | ISO 10993 UL Style 2587 | ||
ALPHA WIRE | 85 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3 | 8.61 mm | 0.339 in | Multi-Conductor | 600 V | 0.035 in | 0.889 mm | Copper Bare | 20 AWG | 10 | 30 AWG | Slate | Braid | Poly-Vinyl Chloride (PVC) | Biological Compatibility | ISO 10993 UL Style 2587 | 152.4 m | 500 ft |
