PXC04 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows	Termination	Insulation Height	Insulation Height	Style	Overall Contact Length [x]	Overall Contact Length [x]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Insulation Material	Contact Material	Contact Shape	Contact Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Mating	Insulation Color	Mounting Type	Material Flammability Rating

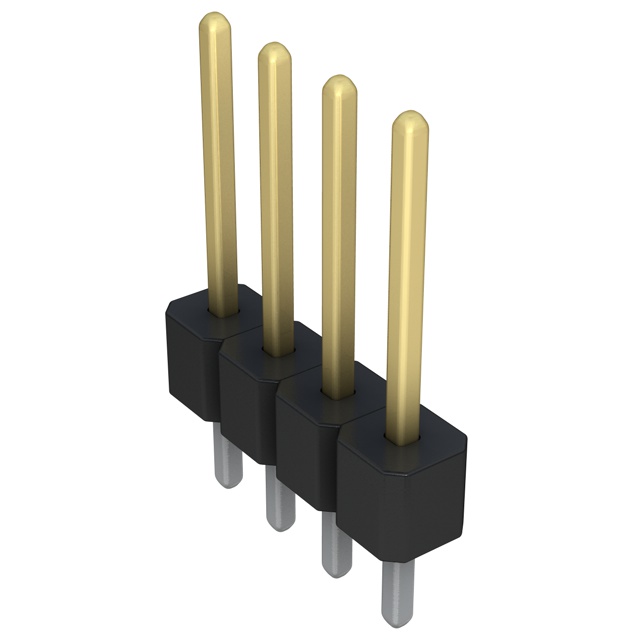

Sullins Connector Solutions PXC04SFAN	0.76 Ám	30 Áin	Header	1	Solder	0.1 in	2.54 mm	Board to Board Cable	13.67 mm	0.538 in	Push-Pull	3.05 mm	0.12 in	2.54 µm	100 µin	0.1 "	2.54 mm	3 A	4	All	Polyester Thermoplastic	Copper Alloy	Square	Male Pin	Tin	8.08 mm	0.318 in	Unshrouded	Gold	Black	Through Hole	UL94 V-0
