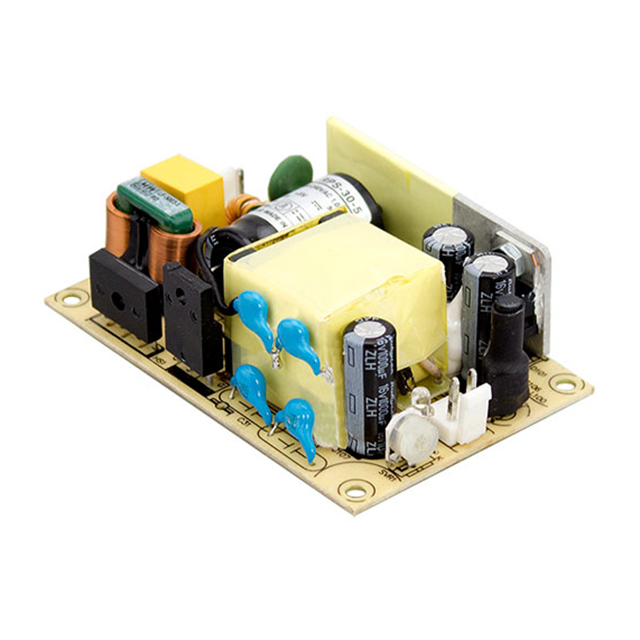

RPS-30 Series

Catalog

AC/DC CONVERTER 24V 30W

Part	Number of Outputs	Voltage - Isolation	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Voltage - Output 1	Approval Agency	Applications	Features	Type	Current - Output 1	Efficiency
MEAN WELL USA Inc. RPS-30-24	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	24 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	1.25 A
MEAN WELL USA Inc. RPS-30-7.5	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	7.5 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	4 A	84 %
MEAN WELL USA Inc. RPS-30-5	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	5 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	6 A
MEAN WELL USA Inc. RPS-30-15	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	15 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	2 A	89 %
MEAN WELL USA Inc. RPS-30-48	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	48 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	625 mA	92 %
MEAN WELL USA Inc. RPS-30-12	1	4000 V	30 Watts	80 VAC	264 VAC	-30 °C	70 °C	50.8 mm	24 mm	3 "	2 in	24.13 mm	76.2 mm	Chassis Mount	12 V	CB CE cURus TUV	Medical	Adjustable Output Universal Input	Open Frame	2.5 A	88 %
